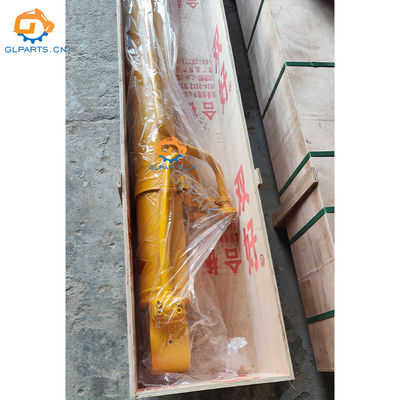

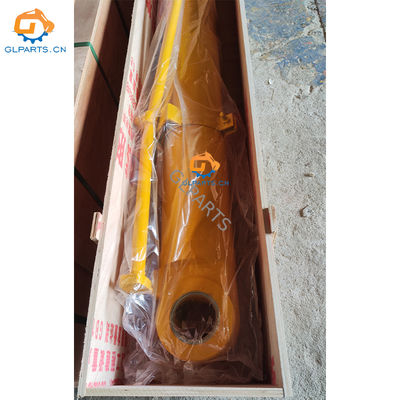

Excavator PC130-7 PC130LC-7 707-01-0F040 707-13-95080 Hydraulic Bucket Cylinder Assy
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | PC130-7 Bucket Hydraulic Cylinder | Model Code | PC130-7 PC130LC-7 |
|---|---|---|---|
| Number | 707-01-0F040 707-13-95080 | Suitable | For Komatsu Excavator |
| Color | Yellow | Struction | Piston Cylinder |
| Warranty | 12 Months | Main Material | Cast Steel |
| Highlight | 707-01-0F040 Hydraulic Cylinder Assy,PC130LC-7 Hydraulic Cylinder Assy,PC130-7 Hydraulic Cylinder Assy |
||
Product Description
Excavator PC130-7 PC130LC-7 707-01-0F040 707-13-95080 Hydraulic Bucket Cylinder Assy
|
Product Name |
EX150 Hydraulic Arm Cylinder |
|
Model |
EX150 EX150LC-5 |
| Part Number |
4370784 9152097 |
|
Cylinder Bore |
60mm-210mm |
| Rod Diameter | 70mm to 150mm |
|
OEM |
Yes |
Due to the high operational demands of excavator equipment, a single hydraulic cylinder failure can significantly disrupt production schedules. Glparts is renowned for delivering highly reliable hydraulic cylinders that help minimize downtime and maintain workflow efficiency.
More Komatsu Hydraulic Cylinders
| Model | Part Numbers |
| PC270-8 | 707-01-0J910, 707-01-XR910 |
| PC800-8, PC800SE, PC850-8, PC850SE | 707-01-XP241, 707-01-XP210 |
| PC2000 | 707-E1-00630 |
| PC450-8 | 707-01-14791 |
| PC800SE-8M0 | 707-G1-03560 |
| PC2000-8 | 707-E1-01870, 707-01-0K750 |
| PC750, PC750SE, PC800, PC800SE | 209-63-02341 |
| PC800-8E | 721-13-18250 |
| PC1250-8 | 21N-63-02304 |
The important parts of the cylinder are the cylinder head, cylinder cover, cylinder sleeve, piston, piston rod, guide sleeve, seal and piston rod.
Common excavator hydraulic cylinder size specifications and parameters
| Cylinder Bore (mm) | Outer Diameter (mm) | Rod Diameter (mm) | Rated pressure (Mpa) | Maximum Pressure (Mpa) |
| φ90 | φ105 | φ60 | 38 | 46 |
| φ95 | φ110 | φ65 | 38 | 46 |
| φ100 | φ120 | φ65 | 38 | 46 |
| φ105 | φ125 | φ70 | 38 | 46 |
| φ110 | φ130 | φ70 | 38 | 46 |
| φ115 | φ140 | φ75 | 38 | 46 |
| φ120 | φ140 | φ80 | 38 | 46 |
| φ125 | φ145 | φ85 | 38 | 46 |
| φ130 | φ152 | φ90 | 38 | 46 |
| φ135 | φ160 | φ95 | 38 | 46 |
| φ140 | φ165 | φ100 | 38 | 46 |
| φ145 | φ170 | φ100 | 38 | 46 |
| φ150 | φ175 | φ105 | 38 | 46 |
| φ160 | φ194 | φ110 | 38 | 46 |
| φ165 | φ200 | φ110 | 38 | 46 |
| φ170 | φ205 | φ110 | 38 | 46 |
| φ175 | φ210 | φ120 | 38 | 46 |
| φ180 | φ225 | φ120 | 38 | 46 |
| φ185 | φ225 | φ130 | 38 | 46 |
