Hydraulic Gear Pump 705-11-33011 For Komatsu GD605A-3 GD655A-3 WA100-3-X WA100-1 WA120-3 WR11-1 WR11-3
Prouduct Description
| Product Name | Hydraulic Gear Pump |
| Model | GD605A-3 GD655A-3 WA100-3-X WA100-1 WA120-3 WR11-1 WR11-3 |
| Part Number | 705-11-33011 |
| Application | For Komatsu GD605A-3 GD655A-3 WA100-3-X WA100-1 WA120-3 WR11-1 WR11-3 Wheel Loaders |
| OEM | Yes |
| Shipping Address | Guangzhou,China |
| Sales Unit | Single product |
| Single product packaging size | 50X50X50 cm |
| Accuracy class | ≤0.05mm(specific models can reach higher accuracy) |
| More Pump We Provided | 711-55-11120 711-58-11120 704-21-29400 704-31-24110 705-73-29010 705-73-30010 07950-10450 705-12-28530 704-12-26120 |
List Of Spare Parts
| Pos. | Part No | Parts name | Comments |
| 705-11-33011 | PUMP Assy,(SAL(2)45) OEM | 6.561 kg. | |
| 1 | 705-17-02011 | BRACKET Assy | 1.467 kg. |
| 705-17-02353 | BUSHING | 0.025 kg. | |
| 2 | 705-17-33012 | CASE,GEAR | 1.36 kg. |
| 3 | 705-17-02122 | COVER Assy | 1.521 kg. |
| 4 | 705-17-33411 | GEAR,DRIVE | 0.8 kg. |
| 5 | 705-17-33512 | GEAR,DRIVEN | 0.62 kg. |
| 6 | 705-17-02612 | PLATE,SIDE | 0.11 kg. |
| 7 | 705-17-02440 | RING,BACK-UP | 0.001 kg. |
| 8 | 705-17-02472 | RING,SEAL | 0.003 kg. |
| 9 | 705-17-02381 | O-RING | 0.01 kg. |
| 10 | 04020-01024 | PIN,DOWEL | 0.015 kg. |
| 11 | 705-17-02770 | BOLT China | |
| 12 | 01643-51232 | WASHER | 0.024 kg. |
| 13 | 705-17-02870 | PLATE | 0.01 kg. |
| 14 | 705-17-02810 | SEAL,OIL China | 0.012 kg. |
| 15 | 04065-04018 | RING,SNAP | 0.005 kg. |

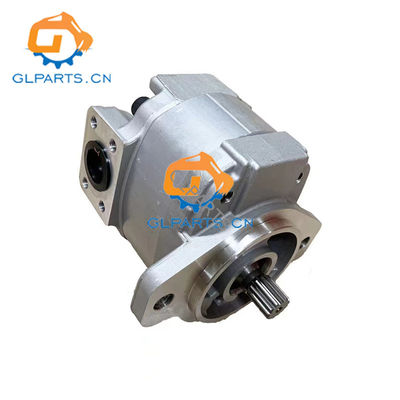

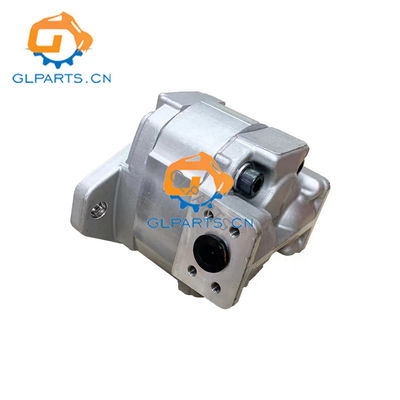

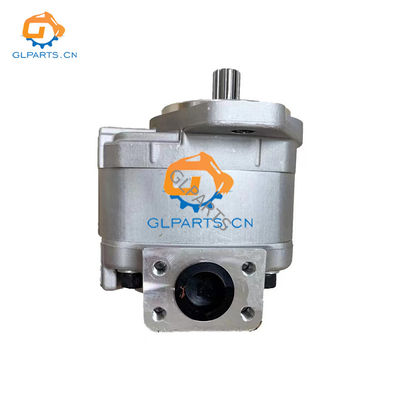

Product Display
Company Information
+16 years experience in hydraulic parts production, GLPARTS brand hydraulic pump are known for their durability, reliability in all conditions and value for money. OEM is available.
Certified , excellent quality management system and testing method make the product strong enough to resist all kindf of climate and environment and work stable. For now, we have the certification like CE,ISO,certified.
Customized hydraulic solution, we can manufacture according to the technical drawing from the client or we can offer our professional suggestion or guidancefor our client according to our experience.
The package can be done as the request of the clients.
For now, we have export more than 15 countries,wining the trust of the customer.
