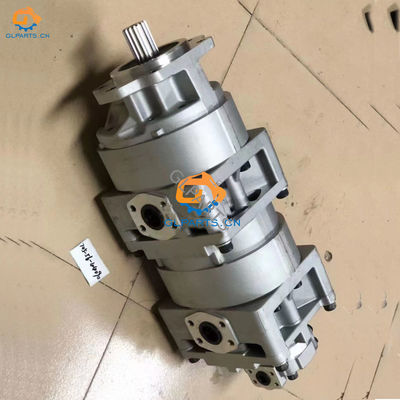

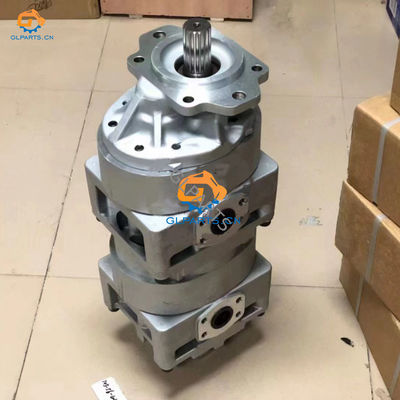

705-56-44090 Hydraulic Pump Assy Gear Pump Fit Intended For Dump Truck HD785-7
Prouduct Description
| Product Name | Hydraulic Gear Pump |
| Model | HD785-7 HD785 |
| Part Number | 705-56-44090 |
| Application | For Komatsu HD785-7 HD785 Dump Truck |
| OEM | Yes |
| Shipping Address | Guangzhou,China |
| Sales Unit | Single product |
| Single product packaging size | 50X50X50 cm |
| Accuracy class | ≤0.05mm(specific models can reach higher accuracy) |
| More Pump We Provided | 705-40-01041 705-22-28320 561-01-83270 705-95-07121 705-52-42250 705-22-45070 705-14-40550 705-22-45080 704-32-30000 708-3S-00950 704-32-30010 20K-14-32420 711-28-11120 419-18-31104 |
List Of Spare Parts
| Pos. | Part No | Parts name | Comments |
| 705-56-44090 | Pump Assembly, (SAR180+180+ (1) 6) Komatsu | 63 kg. | |
| 705-12-45250 | Pump Assembly, (SAR (4) 180) Komatsu | 24.742 kg. | |
| 1 | 705-17-04021 | Bracket Assembly Komatsu | 4.752 kg. |
| 705-17-04352 | Bushing, Plane, Plane Komatsu | 0.11 kg. | |
| 2 | 705-17-04221 | Carrier Komatsu | 6.9 kg. |
| 3 | 705-17-04611 | Plate,Side Komatsu | 0.38 kg. |
| 4 | 705-17-04441 | Ring, Back-up Komatsu | 0.03 kg. |
| 5 | 705-17-04471 | Seal Ring Komatsu | 0.03 kg. |
| 6 | 705-17-04382 | O-ring Komatsu | 0.03 kg. |
| 7 | 705-17-04870 | Plate Komatsu | 0.019 kg. |
| 8 | 704-17-05811 | Seal, Oil China | 0.03 kg. |
| 9 | 04065-06220 | Ring, Snap Komatsu | 0.013 kg. |
| 10 | 705-17-45010 | Case China | |
| 11 | 705-17-45430 | Gear China | |
| 12 | 705-17-45510 | Gear China | |
| 13 | 04020-01842 | Pin, Dowel Komatsu | 0.09 kg. |
| 14 | 705-17-04680 | Bolt China | |
| 15 | 705-17-04750 | Bolt China | |
| 16 | 705-17-04980 | Washer Komatsu | 0.008 kg. |
