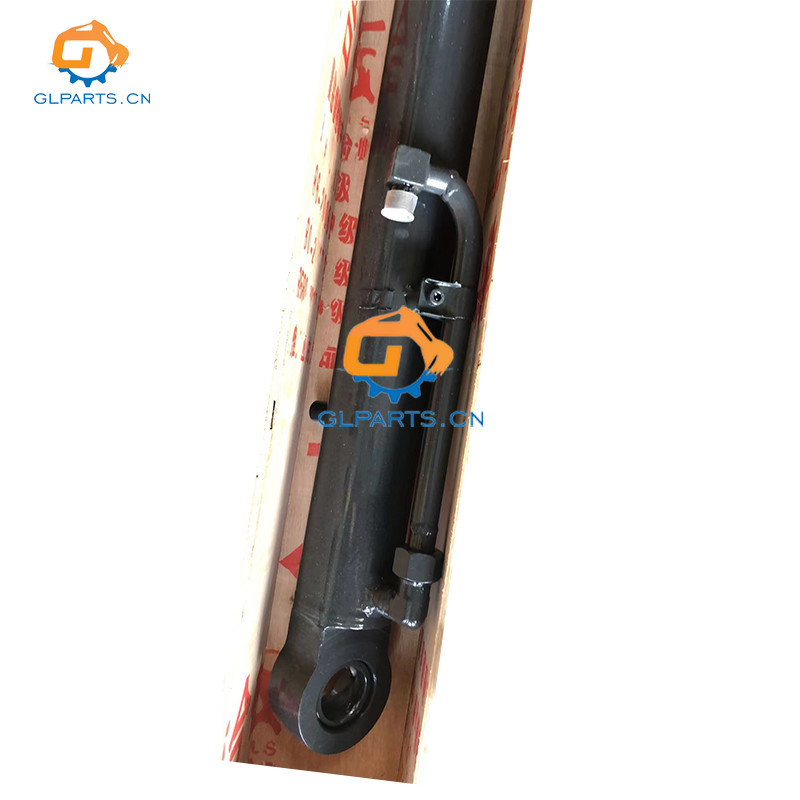

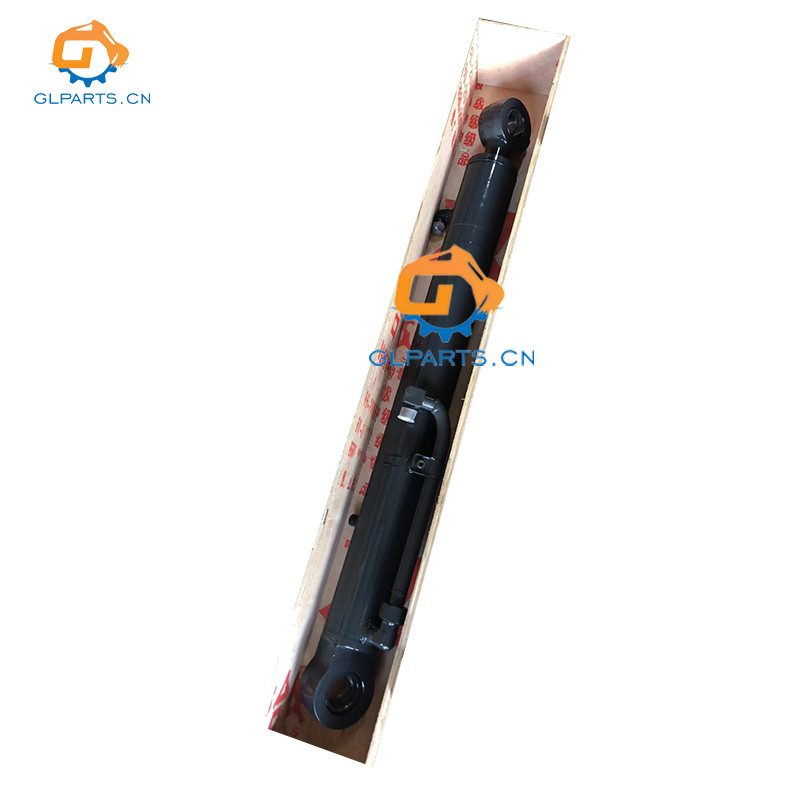

Vio45-5B Hydraulic Bucket Cylinder For Yanmar Hydraulic System Cylinder

1
MOQ
Negotiation
Price
Vio45-5B Hydraulic Bucket Cylinder For Yanmar Hydraulic System Cylinder
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Excavator Hydraulic Bucket Cylinder Supplier
Models: Vio45-5B
Machine Category: Excavators
Can It Be Customized?: Yes
Surface Treatment: Piston Rod Hard Chromium Plating Cylinder Tube ,Inner Honed
Seal Brand: For Japan NOK And US SKF
Seal Material: PU
Testing: 100% Pressure Testing Before Delivery
Factory Direct Supply: Yes
KW1: Hydraulic Cylinder For Heavy Duty Excavators
KW2: Yanmar Cylinder Liner Replacement
KW3: Yanmar Hydraulic Cylinder
Highlight:

Vio45-5B Hydraulic Bucket Cylinder

,

Vio45-5B Hydraulic System Cylinder

,

Yanmar Hydraulic System Cylinder

Basic Infomation
Place of Origin: Made In China
Brand Name: Glparts
Certification: ISO9001
Model Number: Vio45-5B
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 7 Days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 2000pieces/month
Product Description

Excavator Vio45-5B Hydraulic Bucket Cylinder For Yanmar Parts Supplier




Product Description




This machinery replacement is an original for YANMAR spare part in Vio45-5B excavator.

Product Name

Vio45-5B Excavator Hydraulic Cylinder Parts

Model

Vio45-5B

Application

 For YANMAR Vio45-5B Excavator

Temperature Range

-20-80°C

Pressure Range 21 MPa to 35 MPa
Dimensions Customized

OEM

Yes



Service Stage Details
PreSales Service Free consultation and technical advice
Customization options for dimensions and performance based on customer requirements
InSales Service Fast production and delivery times
Real-time updates on manufacturing and shipment status
AfterSales Service Warranty on manufacturing defects
Technical support for installation and maintenance

ps.If you are looking for other hydraulic cylinders for YANMAR, please contact us for a quote



List Spare Parts of Hydraulic Cylinder



No Parts Number Description
1 172A86-70700-N CYLINDER ASSY, ARM
2 172A23-70600 PLUG ASSY
3 172A23-70610 PLUG
4 172A23-70620 HOLDER, PIPE
5 24315-350220 O-RING, 1BP22A
6 26013-080162 BOLT, MBX 16
7 172A86-70710-N TUBE ASSY
8 172168-72240 BUSH
9 172A86-70730 ROD ASSY
10 172168-72240 BUSH
11 172A86-70740 HEAD ASSY
12 172A23-70210 RING, RETAINING
13 172A86-70760 RING, SNAP
14 172A23-71460 BEARING, SLEEVE
15 172A86-70770 PIPE ASSY
16 172168-81270 SEAL DUST
17 172A86-70700 SEAL KIT
18 172A86-70800 SEAL KIT, HEAD
19 172A04-72500 SEAL SET, PISTON 70
20 172A20-71470 PISTON ASSY
21 172923-71480 PISTON
22 17270-72870 SCREW, M8
23 24190-070002 BALL, STEEL 7/32
24 24761-040000 NIPPLE, GREASE B
25 172A20-72069 SHAFT
26 172A23-72052 GROMMET
27 172A46-72070 SPACER
28 172A23-72081 GUIDE, SLIDE
29 472A70-72570 WASHER
30 172A47-72640 BOLT
31 472A25-72000N GUIDE ASSY
32 472A25-72051-N PLATE, SLIDE
33 22217-100000 WASHER, SPRING 10
34 28076-100252 BOLT, 10.9X20
35 26116-100162 BOLT, M10X 16 PLATED
36 933147-03400 WASHER, BRAKE ARM
37 933168-14170 SPRING
38 22217-10000 WASHER, SPRING 10

Vio45-5B Hydraulic Bucket Cylinder For Yanmar Hydraulic System Cylinder 0

Company Information




GuangZhou GuoLi Engineering Machinery Co., Ltd., with over 16 years of experience in excavator hydraulic cylinders, is a foreign trade company specializing in a wide range of products, including crawler excavator arm cylinders, boom cylinders, bucket cylinders, cylinder tubes, cylinder rods, custom hydraulic cylinders, seal kits, hydraulic pumps, and electric parts, all designed for various excavator models. Our products have been exported to over 100 countries and regions worldwide.



Factory Tour



Our main product, excavator cylinders, is produced through a complete hydraulic cylinder production line, from design to manufacturing. With over ten years of experience, we’ve upgraded our offerings to multi-stage hydraulic cylinders. We focus on cylinder customization and produce a variety of domestic and imported excavator cylinders. Using advanced CNC lathes, grinders, and assembly equipment, we strictly follow ISO quality standards throughout production.


Piston Rod Production Process





Feature Description
Material Tempered steel
Surface Treatment Induction hardened before chrome plating to prevent bending and scratching
Rust Resistance Resists rust for over 100 hours in salt spray tests
Production Process Produced and electroplated in-house
Finish Mirror finish technology



Vio45-5B Hydraulic Bucket Cylinder For Yanmar Hydraulic System Cylinder 2

Automatic Welding Process





Feature Description
Welding Method Fully automated welding for consistency and integrity
Craftsmanship Lean welding craft ensures strong joint strength and eliminates defects
Weld Seam Quality Weld seam matches the appearance of original parts
Durability Welded parts are not easy to fall off



Vio45-5B Hydraulic Bucket Cylinder For Yanmar Hydraulic System Cylinder 3

Finished Product Warehouse Display



Vio45-5B Hydraulic Bucket Cylinder For Yanmar Hydraulic System Cylinder 4





Exhibition Showcase




Our Presence at Major Exhibitions: 2023 Malaysia & 2024 Shanghai Bauma



Exhibition With Cooperated Clients






Certificates






Certification


FAQ






1.How can I be sure the part will fit my excavator ?

  • Give us correct model number /machine serial number /any numbers on the parts itself.

  • Or measure the parts give us dimension or drawing.



2.What material do you use on hydraulic cylinder?

  • High frequency quenching No.40 manganese steel as rod material so the cylinder rod has better bending resistance.

  • No.25 manganese steel as tube material ,so the tube has better wear resistance,

    High-strength hardened steel as rod head and tube head ,so the cylinder head and rod head more durable.

  • Name-brand seal kits to reduce the hydraulic cylinder oil leakage rate.



3.How long can an order delivery?

  • For some often used models of excavator hydraulic cylinder , we have in stock, within 7 days .

  • For any order less than one container takes about 2 weeks to finish; Order of 1-2 container takes 4 -6weeks.

  • At busy manufacturing season, manufacturing time needs more which can confirm by discussion.



4.How to pay?

  • Order less than 3000USD, full payment at order, Order over USD3000 value ,50% deposited in to start,

    50% balance paid to deliver,inspection service accepted.

  • For customized order, 70%payment as deposit ,30% balance paid to deliver.



5.How to delivery?

  • If you have shipping agent ,we will cooperate with your agent to arrange shipment .

  • If not , we have good relationships with shipping companies, express suppliers.

  • For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)
