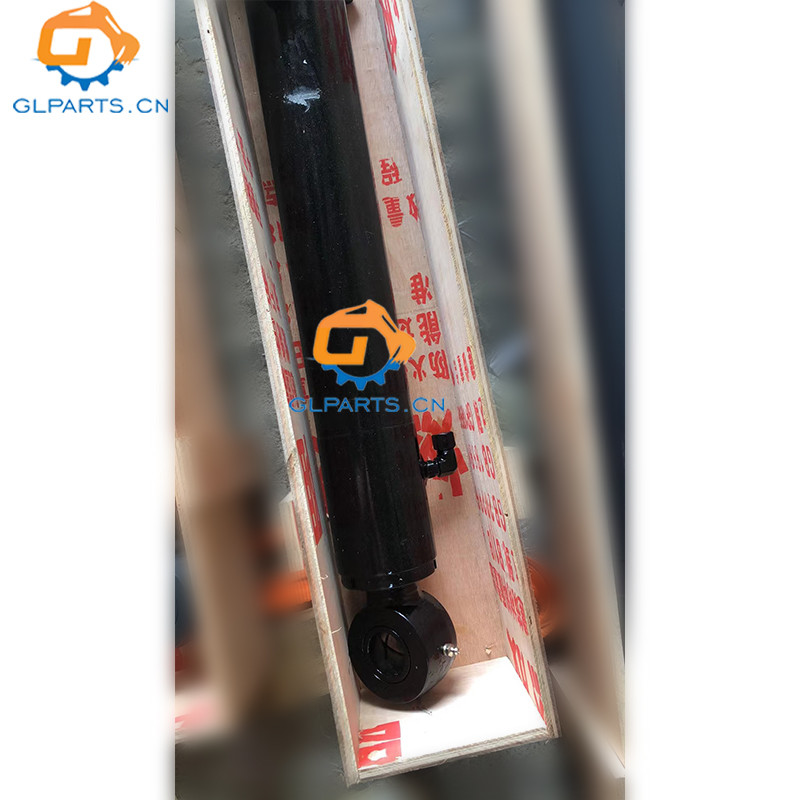

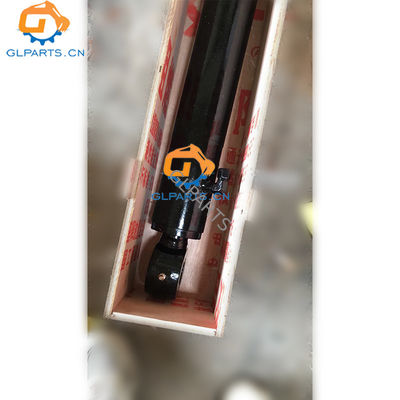

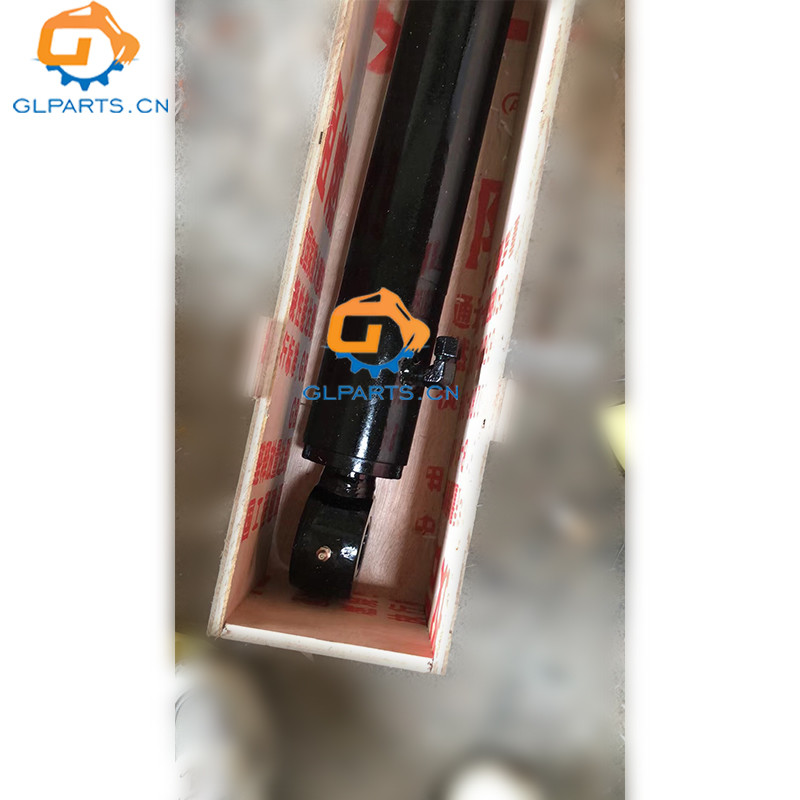

ViO27-5B Hydraulic Bucket Cylinder for YANMAR Excavator Cylinder Repair

1
MOQ
Negotiation
Price
ViO27-5B Hydraulic Bucket Cylinder for YANMAR Excavator Cylinder Repair
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: ViO27-5B Bucket Hydraulic Cylinder For Excavator
Models: ViO27-5B
Machine Category: Excavators
Can It Be Customized?: Yes
Surface Treatment: Piston Rod Hard Chromium Plating Cylinder Tube ,Inner Honed
Seal Brand: For Japan NOK And US SKF
Seal Material: PU
Testing: 100% Pressure Testing Before Delivery
Factory Direct Supply: Yes
KW1: Excavator Hydraulic Bucket Cylinder
KW2: Bucket Cylinder Custom Parts
KW3: Excavator Parts Suppliers
Basic Infomation
Place of Origin: Made In China
Brand Name: Glparts
Certification: ISO9001
Model Number: ViO27-5B
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 7 Days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 2000pieces/month
Product Description

ViO27-5B Hydraulic Bucket Cylinder for YANMAR Excavator Cylinder Repair



Product Description



Product Name

ViO27-5B for YANMAR Hydraulic Bucket Cylinder

Model

VIO27-5B

Application

 For YANMAR VIO27-5B Excavator

Temperature Range

-20-80°C

Pressure Range 21 MPa to 35 MPa
Dimensions Customized

OEM

Yes


Service Stage Details
PreSales Service Free consultation and technical advice
Customization options for dimensions and performance based on customer requirements
InSales Service Fast production and delivery times
Real-time updates on manufacturing and shipment status
AfterSales Service Warranty on manufacturing defects
Technical support for installation and maintenance


List of Spare Parts Of Arm Cylinder

No Part Number Description
1 172137-46402 SEAT, SPRING
2 172723-72570 WASHER
3 172A23-72043 SHAFT
4 172A23-72084 BOLT
5 172A23-72052 GROMMET
6 172A46-72081 GUIDE, SLIDE
7 172A46-72502 CYLINDER ASSY
8 172A46-72502N CYLINDER ASSY
9 172486-72190 PISTON
10 172141-72250 NUT
11 172141-72420 WASHER, LOCK
12 172A46-72470 SEAL SET, CYLINDER
13 172460-72070 SEAL SET, PISTON
14 172A46-72500 SEAL SET, HEAD
15 172A46-72511-2 TUBE, BUCKET
16 172A46-72541-N TUBE, BUCKET
17 172168-72240 BUSH
18 172168-81270 SEAL DUST
19 172A46-72541 ROD ASSY, BUCKET
20 172168-72240 BUSH
21 172168-81270 SEAL DUST
22 172A46-72570 HEAD ASSY
23 172141-73000 RING, SPRING
24 24850-040300 BUSH, 40X30
25 172A46-72601-2 PIPE ASSY, BUCKET
26 172A46-72601-N PIPE ASSY, BUCKET
27 172645-76560 JOINT ASSY
28 231510-00140 O-RING, 1BP140
29 172A46-72510 WASHER, 10
30 24761-04000 NIPPLE, GREASE B
31 26013-100202 BOLT, M10X20
32 172A25-72002 GUIDE ASSY
33 172A25-72000N GUIDE ASSY
34 172A25-72051-N PLATE, SLIDE
35 172A25-72051 PLATE, SLIDE
36 22217-10000 WASHER, SPRING 10
37 172A46-72070 SPACER
38 26076-100202 BOLT, 10.9X20
39 26076-100252 BOLT, 10.9X25
40 26116-100162 BOLT, M10K 16 PLATED
41 93317-03400 WASHER, BRAKE ARM
42 92316-14170 SPRING
43 22217-400000 WASHER, SPRING 10

ViO27-5B Hydraulic Bucket Cylinder for YANMAR Excavator Cylinder Repair 0

Company Information




GuangZhou GuoLi Engineering Machinery Co., Ltd., with over 16 years of experience in excavator hydraulic cylinders, is a foreign trade company specializing in a wide range of products, including crawler excavator arm cylinders, boom cylinders, bucket cylinders, cylinder tubes, cylinder rods, custom hydraulic cylinders, seal kits, hydraulic pumps, and electric parts, all designed for various excavator models. Our products have been exported to over 100 countries and regions worldwide.


Factory Tour


Piston Rod Production Process

ViO27-5B Hydraulic Bucket Cylinder for YANMAR Excavator Cylinder Repair 2

Automatic Welding Process

ViO27-5B Hydraulic Bucket Cylinder for YANMAR Excavator Cylinder Repair 3

Finished Product Warehouse Display


ViO27-5B Hydraulic Bucket Cylinder for YANMAR Excavator Cylinder Repair 4




Exhibition Showcase



Our Presence at Major Exhibitions: 2023 Malaysia & 2024 Shanghai Bauma



Exhibition With Cooperated Clients




Certificates





Certification


FAQ





1.How can I be sure the part will fit my excavator ?

  • Give us correct model number /machine serial number /any numbers on the parts itself.

  • Or measure the parts give us dimension or drawing.


2.What material do you use on hydraulic cylinder?

  • High frequency quenching No.40 manganese steel as rod material so the cylinder rod has better bending resistance.

  • No.25 manganese steel as tube material ,so the tube has better wear resistance,

    High-strength hardened steel as rod head and tube head ,so the cylinder head and rod head more durable.

  • Name-brand seal kits to reduce the hydraulic cylinder oil leakage rate.


3.How long can an order delivery?

  • For some often used models of excavator hydraulic cylinder , we have in stock, within 7 days .

  • For any order less than one container takes about 2 weeks to finish; Order of 1-2 container takes 4 -6weeks.

  • At busy manufacturing season, manufacturing time needs more which can confirm by discussion.


4.How to pay?

  • Order less than 3000USD, full payment at order, Order over USD3000 value ,50% deposited in to start,

    50% balance paid to deliver,inspection service accepted.

  • For customized order, 70%payment as deposit ,30% balance paid to deliver.


5.How to delivery?

  • If you have shipping agent ,we will cooperate with your agent to arrange shipment .

  • If not , we have good relationships with shipping companies, express suppliers.

  • For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)
