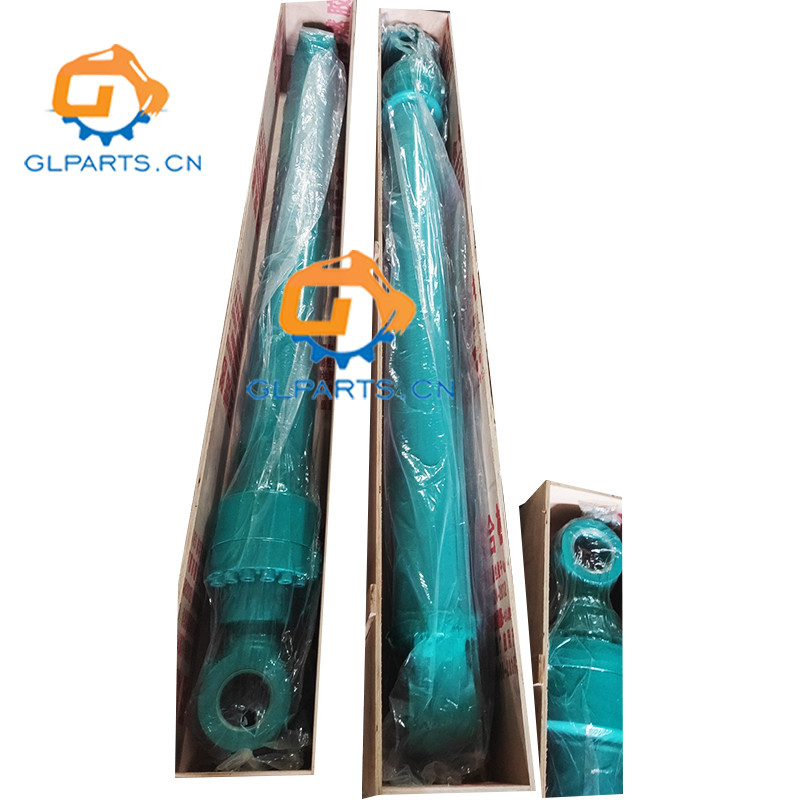

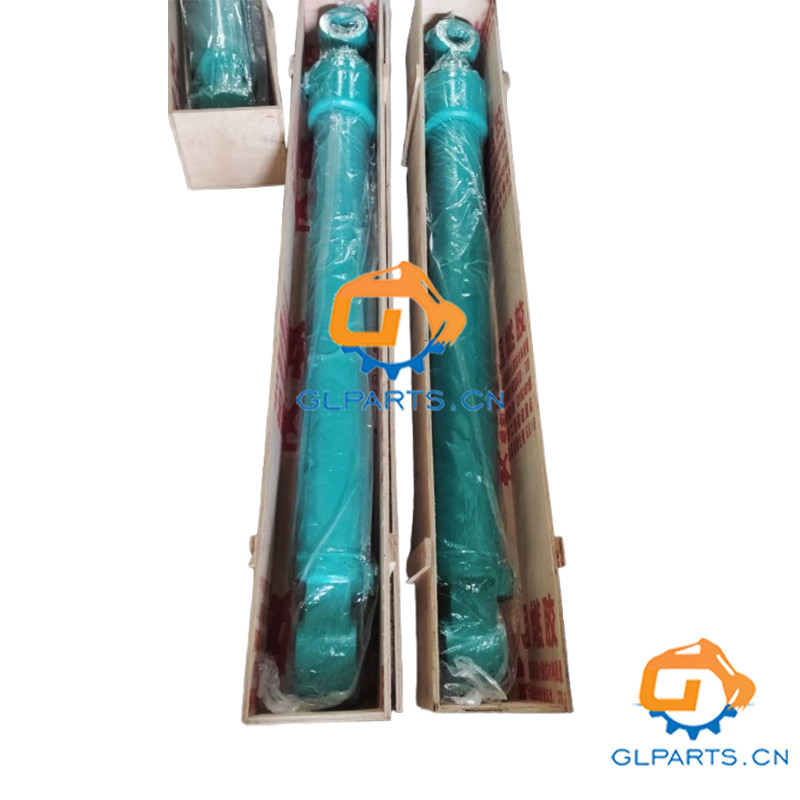

Kobelco SK200-8 Excavator Hydraulic Bucket Cylinder YN01V00174F1 YX01V00005F6
Product Description
Product Name | SK200-8 Hydarulic Excvator Parts Cylinder |
Model | SK200-8 |
| Compatible With Other Kobelco Models | 200-8 SK210DLC-8 SK210D-8 SK210LC-8 E115SR E215B E135SR E135SRLC SK135SRLC-1E SK260 SK260-9 SK210-8 SK115SRDZ-1E SK210-9 |
| Part Number Of SK200-8 Hydraulic Cylinder Bucket Cylinder | YN01V00174F1 YX01V00005F6 |
Temperature Range | -20-80°C |
| Pressure Range | 21 MPa to 35 MPa |
| Dimensions | Customized |
OEM | Yes |
| Service Stage | Details |
| PreSales Service | Free consultation and technical advice |
| Customization options for dimensions and performance based on customer requirements | |
| InSales Service | Fast production and delivery times |
| Real-time updates on manufacturing and shipment status | |
| AfterSales Service | Warranty on manufacturing defects |
| Technical support for installation and maintenance |
ps.If you are looking for other hydraulic cylinders for the SK200-8, please contact us for a quote
List Of Spare Parts
| Pos | Part No | Qty | Parts name | Comments |
| YN01V00174F1 | [1] | CYLINDER | KOB Bucket | |
| 1 | NSS | [1] | NOT SOLD SEPARAT | CON Tube, Cylinder |
| 2 | NSS | [1] | NOT SOLD SEPARAT | CON Rod, Piston |
| 3 | YN01V00151S003 | [1] | CYLINDER HEAD | KOB |
| 4 | 2438U1106S17 | [1] | BUSHING | KOB |
| 5 | 2438U959S5 | [1] | RING | KOB Retaining |
| 6 | YN01V00151S006 | [1] | RING | KOB Buffer |
| 7 | YN01V00151S007 | [1] | RING | KOB U |
| 8 | 2438U959S8 | [1] | RING | KOB Back Up |
| 9 | LP01V00008S009 | [1] | RING | KOB Wiper |
| 10 | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOB |
| 11 | 2438U1105S12 | [1] | BACK-UP RING | KOB |
| 12 | ZS23C16075 | [12] | SCREW,Hex Socket Head, M16 x 75mm | KOB Cap |
| 13 | YN01V00174S013 | [1] | RING | KOB Bearing, Cushion |
| 14 | YN01V00174S014 | [1] | PISTON | KOB |
| 15 | 2438U1105S16 | [1] | RING ASSY. | KOB Seal |
| 16 | LQ01V00004S017 | [2] | BACK-UP RING | KOB |
| 17 | YN01V00151S018 | [2] | RING | KOB Slide Superseded by part number: 2438U1105S17 |
| 18 | 2438U1105S18 | [2] | RING | KOB Slide |
| 19 | 2438U999S21 | [1] | SET SCREW | KOB Set |
| 20 | 2436U330S16 | [1] | BALL | KOB |
| 21 | YN12B02221P1 | [4] | BUSHING,80mm ID x 95mm OD x 47mm L | KOB |
| 22 | YN01V00153S022 | [4] | SEAL | KOB Dust |
| YN01V00174R100 | [1] | REPAIR KIT | KOB Repair Kit Rod Side | |
| YN01V00151R200 | [1] | REPAIR KIT | KOB Piston Side Superseded by part number: YN01V00151R600 | |
| YN01V00174R300 | [1] | REPAIR KIT | KOB Repair Kit All (Rod + Piston) | |
| YN01V00174R400 | [1] | REPAIR KIT | KOB Repair Kit Consists Of Ref. 1x1, 21x2, 22x2 | |
| YN01V00174R500 | [1] | REPAIR KIT | KOB Repair Kit Consists Of Ref. 2x1, 21x2, 22x2 |
| Pos | Part No | Qty | Parts name | Comments |
| YX01V00005F6 | [1] | CYLINDER,Double Acting, 65mm Rod, 885mm Stroke | KOB Assy, Bucket | |
| YX01V00005F6R | [1] | REMAN-HYD CYLINDER | RAC SK210D-8, 200-8, BOTH S/N YN11-45001 -, SK210DLC-8, SK210LC-8, BOTH S/N YQ11-06001 - | |
| YX01V00005F6C | [1] | CORE-HYD CYLINDER | RAC Return number | |
| YX01V00005F7 | [1] | HYDRAULIC CYLINDER | KOB Assy, Bucket | |
| YX01V00005F7R | [1] | REMAN-HYD CYLINDER | RAC 200-8, SK210D-8, Both S/N YN11-45001 -, SK210DLC-8, SK210LC-8, Both S/N YQ11-06001 - | |
| YX01V00005F7C | [1] | CORE-HYD CYLINDER | RAC Return Number | |
| YX01V00005F8 | [1] | BUCKET CYLINDER | KOB Assy, Bucket | |
| 1 | NSS | [1] | NOT SOLD SEPARAT | CON Tube, Cylinder (F8 ONLY) |
| 2 | 2438U1097S2 | [2] | BUSHING | KOB Bushing (F7, F8 ONLY) |
| 3 | 2438U1097S29 | [4] | SEAL | KOB Dust |
| 4 | NSS | [1] | NOT SOLD SEPARAT | CON Rod, Piston |
| 5 | YW01V00003S029 | [1] | PISTON | KOB |
| 6 | YW01V00001S008 | [1] | O-RING | KOB |
| 7 | YW01V00001S009 | [2] | BACK-UP RING | KOB |
| 8 | YW01V00003S030 | [1] | SEAL | KOB Piston Superseded by part number: YW01V00001S031 |
| 9 | YW01V00001S032 | [2] | RING | KOB Wear |
| 10 | YW01V00001S012 | [2] | RING | KOB |
| 11 | YW01V00001S013 | [1] | NUT | KOB Piston |
| 12 | YN01V00001S014 | [1] | SCREW | KOB Set |
| 13 | YX01V00005S013 | [1] | RING | KOB Cushion |
| 15 | 2438U1097S18 | [1] | BUSHING | KOB |
| 16 | B38K0038E10 | [1] | CLIP | KOB |
| 17 | ZD12G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOB |
| 18 | YW01V00001S020 | [1] | RING | KOB Back Up |
| 19 | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOB O-Ring |
| 23 | ZS23C14065 | [8] | BOLT,Hex Socket Head, M14 x 65mm | KOB Capscrew |
| 24 | YW01V00003S024 | [1] | BRACKET | KOB Band |
| 25 | YW01V00003S025 | [1] | BRACKET | KOB Band (F6, F7 ONLY) |
| YW01V00003S025 | [2] | BRACKET | KOB Band (F8 ONLY) | |
| 26 | ZS16C10030 | [2] | CAPSCREW | KOB SCREW Cap (F6, F7 ONLY) Superseded by part number: ZS18C10030 |
| ZS16C10030 | [4] | CAPSCREW | KOB SCREW Cap (F8 ONLY) Superseded by part number: ZS18C10030 | |
| 27 | ZW26X10000 | [2] | LOCK WASHER | KOB (F6,F7 ONLY) |
| ZW26X10000 | [4] | LOCK WASHER | KOB (F8 ONLY) | |
| 28 | YX01V00005S028 | [1] | BAND | KOB (F8 ONLY) |
| 29 | NSS | [1] | NOT SOLD SEPARAT | CON Tube, Cylinder (F6, F7 ONLY) |
| 30 | YN01V01086P1 | [1] | BUSHING,60mm ID x 80mm OD x 70mm L | KOB (F6 ONLY) |
| 31 | YN01V01092P1 | [1] | BUSHING,60.2mm ID x 70mm OD x 80mm L | KOB (F6 ONLY) |
| 32 | YX01V00005S032 | [1] | COVER | KOB Rod |
| 33 | YY01V00005S029 | [1] | SEAL | KOB |
| 34 | YY01V00005S030 | [1] | PACKING | KOB Rod |
| 35 | YY01V00005S031 | [1] | BACK-UP RING | KOB |
| 36 | YY01V00005S032 | [1] | SEAL | KOB Dust Superseded by part number: 2438U807S15 |
| 37 | B38K0039E11 | [1] | CLAMP | KOB Clip |
| YX01V00005R200 | [1] | REPAIR KIT | KOB Piston Side Superseded by part number: YW01V00003R200 | |
| YX01V00005R400 | [1] | TUBE | KOB Repair Kit Consists Of Ref. 1x1, 2x1 (F8 ONLY) | |
| YX01V00005R500 | [1] | PISTON ROD | KOB Repair Kit Consists Of Ref. 2x1, 4x1 (F7, F8 ONLY) | |
| YX01V00005R600 | [1] | TUBE | KOB Repair Kit Consists Of Ref. 2x1, 29x1 (F7 ONLY) | |
| YX01V00005R800 | [1] | REPAIR KIT | KOB Consists Of Ref. 29x1, 30x1 (F6 ONLY) | |
| YX01V00005R900 | [1] | REPAIR KIT | KOB Piston Rod Kit, Consists Of Ref. 4x1, 31x1 (F6 ONLY) | |
| YY01V00005R600 | [1] | REPAIR KIT | KOB Rod Side, Consists Of Ref. 17x1, 18x1, 19x1, 33x1, 34x1, 35x1, 36x1 | |
| YY01V00005R700 | [1] | REPAIR KIT | KOB All (Rod + Piston) Consists Of Ref. 6x1, 7x2, 8x1, 9x2, 10x2, 17x1, 18x1, 19x1, 33x1, 34x1, 35x1, 36x1 |
* If you need other cylinder assemblies or cylinder spare parts, feel free to send us an inquiry, and we will respond to your request immediately
Excavator Hydraulic Cylinder Fits Kobelco Models
| Part Number | Compatible Models |
| YN15V00025S111 CYLINDER | SK200LC-6ES SK210-8 SK200SR ED195-8 SK200SR-1S SK200SRLC SK200SRLC-1S SK210D-8 SK210LC-6E SK210LC-8 200-8 SK260 SK210DLC-8 SK160LC-6E SK170 ACERA M-9 SK170-8 SK170-9 SK215SRLC ED190L... |
| YN15V00037S104 CYLINDER | SK170-9 SK210DLC-8 SK215SRLC SK210-8 SK210LC-8 SK210-9 200-8 SK210D-8 |
| YN01V00175F2 CYLINDER | 200-8 SK210DLC-8 SK210D-8 SK210LC-8 |
| YN01V00086F1 CYLINDER | SK210DLC-8 SK200LC-6ES SK210LC-8 200-8 SK210D-8 SK200-6ES |
| YN01V00087F1 CYLINDER | SK210DLC-8 SK200LC-6ES SK210LC-8 200-8 SK210D-8 SK200-6ES |
| YN01V00125F1 CYLINDER | SK210DLC-8 SK200LC-6ES SK210LC-8 200-8 SK210D-8 SK200-6ES |
| YN01V00184F1 CYLINDER | 200-8 SK210DLC-8 SK210D-8 SK210LC-8 |
| YN01V00151F1 CYLINDER | SK210DLC-8 SK215SRLC SK210LC-8 200-8 SK210D-8 |
| 2437U219S02 CYLINDER | SK480LC SK480LC-6E SK16-N2 SK300 SK16LC-N2 SK400 SK400LC SK300LC SK330 SK330LC SK300-2 MD450BLC SK300LC-2 |
| 2437U219S01 CYLINDER | SK480LC SK480LC-6E SK16-N2 SK300 SK16LC-N2 SK400 SK400LC SK300LC SK330 SK330LC SK300-2 MD450BLC SK300LC-2 |
| 2441U667S111 CYLINDER | MD400LC |
| 2441U354S151 CYLINDER | MD300LC |
| 2436U1138F1 CYLINDER | SK220LC MD240C |
| YN01V00174F1 CYLINDER | 200-8 SK210DLC-8 SK210D-8 SK210LC-8 |
| YN01V00175F1 CYLINDER Double Acting 95mm Rod 1558mm Stroke | SK210DLC-8 SK210-8 260SR-3 SK235SRLC-2 SK210LC-8 SK235SR-2 SK210-9 200-8 SK210D-8 SK235SR-1E |
| YN01V00151F1 CYLINDER | SK210DLC-8 SK215SRLC SK210LC-8 200-8 SK210D-8 |
Company Information
GuangZhou GuoLi Engineering Machinery Co., Ltd., with over 16 years of experience in excavator hydraulic cylinders, is a foreign trade company specializing in a wide range of products, including crawler excavator arm cylinders, boom cylinders, bucket cylinders, cylinder tubes, cylinder rods, custom hydraulic cylinders, seal kits, hydraulic pumps, and electric parts, all designed for various excavator models. Our products have been exported to over 100 countries and regions worldwide.
Factory Tour
Our main product, excavator cylinders, is produced through a complete hydraulic cylinder production line, from design to manufacturing. With over ten years of experience, we’ve upgraded our offerings to multi-stage hydraulic cylinders. We focus on cylinder customization and produce a variety of domestic and imported excavator cylinders. Using advanced CNC lathes, grinders, and assembly equipment, we strictly follow ISO quality standards throughout production.
Piston Rod Production Process
| Feature | Description |
| Material | Tempered steel |
| Surface Treatment | Induction hardened before chrome plating to prevent bending and scratching |
| Rust Resistance | Resists rust for over 100 hours in salt spray tests |
| Production Process | Produced and electroplated in-house |
| Finish | Mirror finish technology |
Automatic Welding Process
| Feature | Description |
| Welding Method | Fully automated welding for consistency and integrity |
| Craftsmanship | Lean welding craft ensures strong joint strength and eliminates defects |
| Weld Seam Quality | Weld seam matches the appearance of original parts |
| Durability | Welded parts are not easy to fall off |
Finished Product Warehouse Display
Exhibition Showcase
Our Presence at Major Exhibitions: 2023 Malaysia & 2024 Shanghai Bauma
Exhibition With Cooperated Clients
Certificates
Certification
FAQ
1.How can I be sure the part will fit my excavator ?
Give us correct model number /machine serial number /any numbers on the parts itself.
Or measure the parts give us dimension or drawing.
2.What material do you use on hydraulic cylinder?
High frequency quenching No.40 manganese steel as rod material so the cylinder rod has better bending resistance.
No.25 manganese steel as tube material ,so the tube has better wear resistance,
High-strength hardened steel as rod head and tube head ,so the cylinder head and rod head more durable.
Name-brand seal kits to reduce the hydraulic cylinder oil leakage rate.
3.How long can an order delivery?
For some often used models of excavator hydraulic cylinder , we have in stock, within 7 days .
For any order less than one container takes about 2 weeks to finish; Order of 1-2 container takes 4 -6weeks.
At busy manufacturing season, manufacturing time needs more which can confirm by discussion.
4.How to pay?
Order less than 3000USD, full payment at order, Order over USD3000 value ,50% deposited in to start,
50% balance paid to deliver,inspection service accepted.
For customized order, 70%payment as deposit ,30% balance paid to deliver.
5.How to delivery?
If you have shipping agent ,we will cooperate with your agent to arrange shipment .
If not , we have good relationships with shipping companies, express suppliers.
For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)
