SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 For Kobelco

1
MOQ
Negotiation
Price
SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 For Kobelco
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: SK135 SK135SR Bucket Arm Boom Cylinder For Kobelco
Product Alias: Excavator Hydraulic Cylinder
Part Number: ​YY01V00001F1 YY01V00002F1
Suitable For Other Models: SK135SR SK135SRLC-1E SK135SR-1E SK115SRDZ-1E ED150 SK115SRDZ SK135SRL ED150-1E SK135SRL-1E SK135SRLC
Other Excavator Cylinder Parts: YY01V00001F1 YY01V00002F1 YX01V00008F1 YY01V00009F1 YX42H00007F1
Surface Treatment: Piston Rod Hard Chromium Plating Cylinder Tube ,Inner Honed
Seal Brand: For Japan NOK And US SKF
Seal Material: PU
Testing: 100% Pressure Testing Before Delivery
Factory Direct Supply: Yes
Highlight:

SK135SR Hydraulic Boom Cylinder

,

Hydraulic Boom Cylinder YY01V00001F1

,

Kobelco boom hydraulic cylinder

Basic Infomation
Place of Origin: Made In China
Brand Name: Glparts
Certification: ISO9001
Model Number: SK135 SK135SR
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 7 Days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 2000pieces/month
Product Description

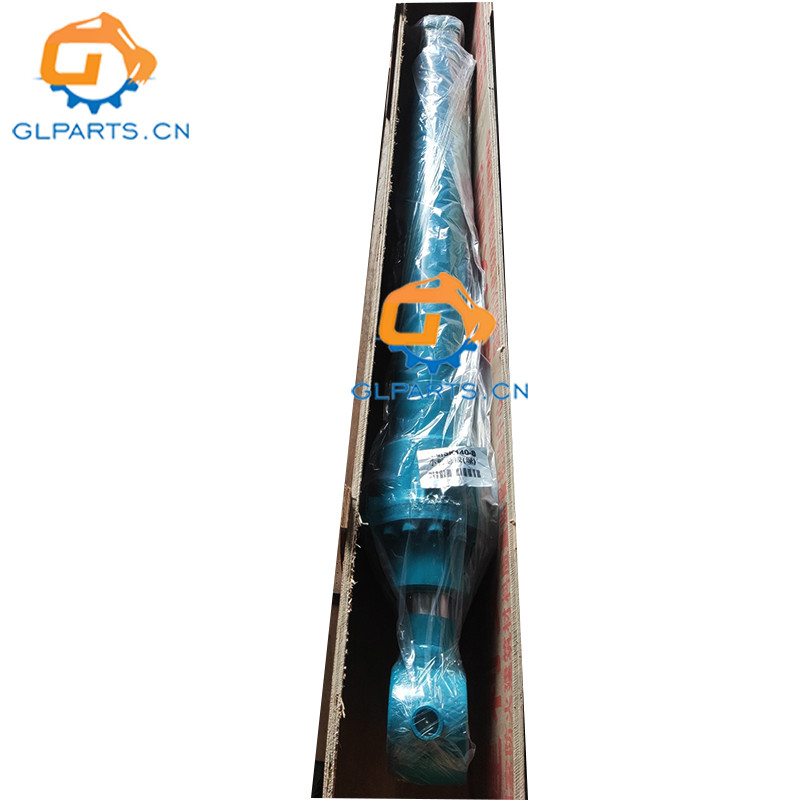

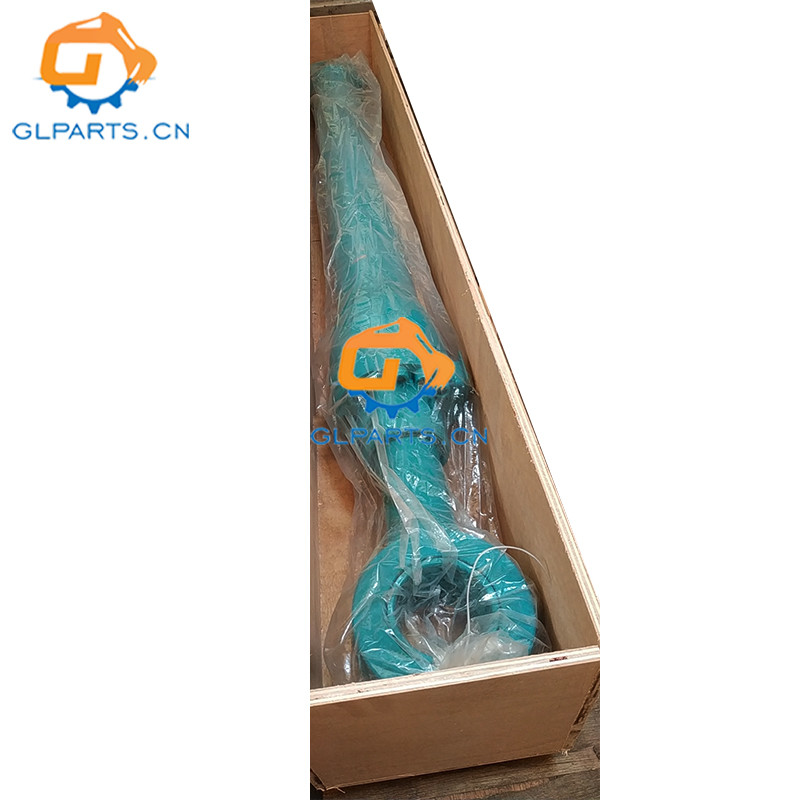

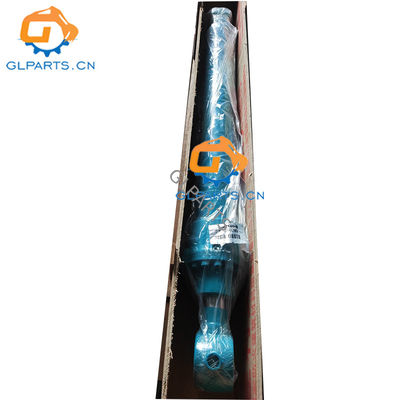

SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 Arm Bucket Cylinder For Kobelco




Product Description






Product Name

Excavator Hydraulic Bucket Cylinder,Boom Cylinder,Stick Cylinder

Model

SK135 SK135SR

Part Number Of SK60 Hydraulic Cylinder Bucket Cylinder

YY01V00001F1 YY01V00002F1 YX01V00008F1 YY01V00009F1 YX42H00007F1

Compatible With Other Machinery Models

SK135SR SK135SRLC-1E SK135SR-1E SK115SRDZ-1E ED150 SK115SRDZ SK135SRL ED150-1E SK135SRL-1E SK135SRLC

Temperature Range



-20-80°C

Pressure Range 21 MPa to 35 MPa
Dimensions Customized

OEM

Yes





Service Stage Details
PreSales Service Free consultation and technical advice
Customization options for dimensions and performance based on customer requirements
InSales Service Fast production and delivery times
Real-time updates on manufacturing and shipment status
AfterSales Service Warranty on manufacturing defects
Technical support for installation and maintenance

ps.If you are looking for other hydraulic cylinders for the SK135 SK135SR, please contact us for a quote



List Of Spare Parts




Pos Part No Qty Parts name Comments
1 YY01V00001F1 [1] CYLINDER ASSY KOB Superseded by part number: YY01V00002F2
2 YY01V00002F1 [1] CYLINDER ASSY KOB BOOM (L. H) Superseded by part number: YY01V00002F2
3 YX01V00008F1 [1] CYLINDER KOB ASSY, OFFSET Superseded by part number: YX01V00008F2
4 YY01V00009F1 [1] CYLINDER KOB ARM Superseded by part number: YY01V00009F2
  YX42H00007F1 [1] HYD, CYLINDER
A1 YX42H01051P1 [1] TUBE KOB
A2 YX42H01052P1 [1] TUBE KOB
A3 YX42H01061D1 [2] HOSE KOB
A4 ZC26X22011 [1] CLAMP KOB Single Line -- 38x29x65mm Long
A5 ZS18C10050 [1] SCREW,Hex, M10 x 50mm KOB M10x1.50x50mm
A6 ZS28C10030 [8] SCREW,Hex Socket Head, M10 x 30mm KOB M10x1.50x30mm
A7 ZW26X10000 [1] LOCK WASHER KOB ID 10 x OD 18 x Th 2.5mm
A8 ZH22Z04000 [1] HYD CONNECTOR KOB 1/4"PTx1/4"PFx37mm Long
A9 ZD12A01600 [8] O-RING KOB ID 15.60 ± 0.12 x OD 19.16mm
A10 ZD12P02600 [2] O-RING KOB ID 25.70 ± 0.26 x OD 32mm
A11 ZG91S02000 [1] LUBE NIPPLE,1/8" NPT x 1/8" NPT KOB 1/8" PT -- Straight
  YY42H00029F1 [1] HYD, CYLINDER
B1 YX42H01034P1 [1] TUBE KOB
B2 YY42H01132P1 [1] TUBE KOB
B3 YX42H01062D1 [1] HOSE KOB
B4 YX42H01063D1 [1] HOSE KOB
B5 ZD12A01600 [1] O-RING KOB ID 15.60 ± 0.12 x OD 19.16mm
B6 ZD12A01800 [1] O-RING,1.78mm Thk x 18.77mm ID, Cl 6 KOB ID 18.77 ± 0.12 x OD 22.33mm
B7 ZD12P02600 [2] O-RING KOB ID 25.70 ± 0.26 x OD 32mm
B8 ZC26X22011 [1] CLAMP KOB Single Line -- 38x29x65mm Long
B9 ZC26X28014 [1] CLAMP KOB Single Line -- 75x37x38mm (Ø28mm)
B10 ZS18C10045 [1] SCREW,Hex, M10 x 45mm KOB M10x1.50x45mm
B11 ZS18C12055 [1] SCREW,Hex, M12 x 55mm KOB M12x1.75x55mm
B12 ZS28C10030 [4] SCREW,Hex Socket Head, M10 x 30mm KOB M10x1.50x30mm
B13 ZS28C10070 [4] SCREW,Hex Socket Head, M10 x 70mm KOB M10x1.50x70mm
B14 ZW26X10000 [1] LOCK WASHER KOB ID 10 x OD 18 x Th 2.5mm
B15 ZW26X12000 [1] LOCK WASHER KOB ID 12 x OD 21 x Th 3.0mm
B16 ZG91S02000 [3] LUBE NIPPLE,1/8" NPT x 1/8" NPT KOB 1/8" PT -- Straight
  YY42H00003F1 [1] LINE KOB HYD, CYLINDER
C1 YY42H01009P1 [1] TUBE KOB
C2 YY42H01010P1 [1] TUBE KOB
C3 YY42H01011P1 [1] TUBE KOB
C4 YY42H01012P1 [1] TUBE KOB
C5 ZX20H10074 [4] HOSE KOB 740mm Long (29-1/8 in)
C6 2432T2244 [2] CLAMP KOB Double -- 102x32x12mm (Ø23xØ23mm)
C7 ZS18C10055 [2] SCREW,Hex, M10 x 55mm KOB M10x1.50x55mm
C8 ZS28C10030 [16] SCREW,Hex Socket Head, M10 x 30mm KOB M10x1.50x30mm
C9 ZW26X10000 [2] LOCK WASHER KOB ID 10 x OD 18 x Th 2.5mm
C10 ZH22Z04000 [2] HYD CONNECTOR KOB 1/4"PTx1/4"PFx37mm Long
C11 ZG91S02000 [2] LUBE NIPPLE,1/8" NPT x 1/8" NPT KOB 1/8" PT -- Straight
C12 ZD12A01600 [4] O-RING KOB ID 15.60 ± 0.12 x OD 19.16mm
C13 ZD12P02600 [4] O-RING KOB ID 25.70 ± 0.26 x OD 32mm
  YX02B00003F1 [1] INSTAL
D1 YX02B01004P1 [2] PIN KOB PIN
D2 ZS18C10016 [2] SCREW,Hex, M10 x 16mm KOB M10x1.50x16mm
D3 ZW26X10000 [2] LOCK WASHER KOB ID 10 x OD 18 x Th 2.5mm
D4 2418T18152D7 [2] SPACER KOB
D5 YN12B01009P1 [4] SHIM,3mm Thk KOB (3.0)
D6 B16T0442D57 [2] SHIM,72mm ID x 130mm OD x 0.5mm Thk KOB ID 72 x OD 130 x Th 0.5mm
D7 B16T0442D44 [2] SHIM,72mm ID x 130mm OD x 0.9mm Thk KOB ID 72 x OD 130 x Th 0.9mm
D8 B16T0442D1 [2] SHIM,130mm OD x 72mm ID x 1.2mm Thk KOB ID 72 x OD 130 x Th 1.2mm
  YX02B00010F1 [1] INSTAL
E1 YX02B01039P1 [2] PIN KOB
E2 ZS83C16020 [2] SCREW KOB Set -- M16x2.0x20mm
E3 ZS28C16030 [2] SCREW,Hex Socket Head, M16 x 30mm KOB M16x2.0x30mm
E4 ZW26K16000 [2] LOCK WASHER KOB ID 16 x OD 24 x Th 3.5mm
E5 PW12B01242P1 [2] WASHER KOB
E6 YX02B01018P1 [2] SHIM KOB (2.0)
E7 B16T0442D79 [2] SHIM,130mm OD x 82mm ID x 0.5mm Thk KOB ID 82 x OD 130 x Th 0.5mm
  YY02B00005F1 [1] CYLINDER KOB INSTAL
F1 LP02B01053P1 [1] PIN KOB
F2 YV02B01011P1 [2] PIN KOB
F3 LP02B01054P1 [2] COLLAR KOB
F4 HS18C14135G1 [2] SCREW KOB Superseded by part number: HS18C14135G2
F5 ZS18C10020 [2] SCREW,Hex, M10 x 20mm KOB M10x1.50x20mm
F6 2418T21137 [2] WASHER KOB
F7 ZW26X10000 [2] LOCK WASHER KOB ID 10 x OD 18 x Th 2.5mm
F8 ZN18C14011 [4] NUT KOB M14x2.0mm
F9 LP02B01055P1 [2] SHIM,3.0mm Thk KOB (3.0)
F10 LP02B01060D1 [2] SHIM KOB ID 82 x OD 110 x Th 0.5mm
F11 LP02B01060D2 [2] SHIM KOB ID 82 x OD 110 x Th 0.9mm
F12 LP02B01060D3 [2] SHIM KOB ID 82 x OD 110 x Th 1.2mm
F13 LP02B01060D4 [2] SHIM KOB ID 82 x OD 110 x Th 1.6mm
F14 B16T0442D57 [2] SHIM,72mm ID x 130mm OD x 0.5mm Thk KOB ID 72 x OD 130 x Th 0.5mm
F15 B16T0442D44 [2] SHIM,72mm ID x 130mm OD x 0.9mm Thk KOB ID 72 x OD 130 x Th 0.9mm
F16 B16T0442D1 [2] SHIM,130mm OD x 72mm ID x 1.2mm Thk KOB ID 72 x OD 130 x Th 1.2mm
F17 B16T0442D2 [2] SHIM,130mm OD x 72mm ID x 1.6mm Thk KOB ID 72 x OD 130 x Th 1.6mm
F18 B16T0442D5 [2] SHIM,130mm OD x 72mm ID x 2.3mm Thk KOB ID 72 x OD 130 x Th 2.3mm

SK135 SK135SR Hydraulic Boom Cylinder YY01V00001F1 YY01V00002F1 For Kobelco 0

* If you need other cylinder assemblies or cylinder spare parts, feel free to send us an inquiry, and we will respond to your request immediately
