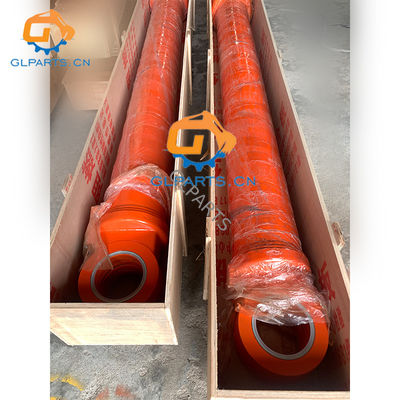

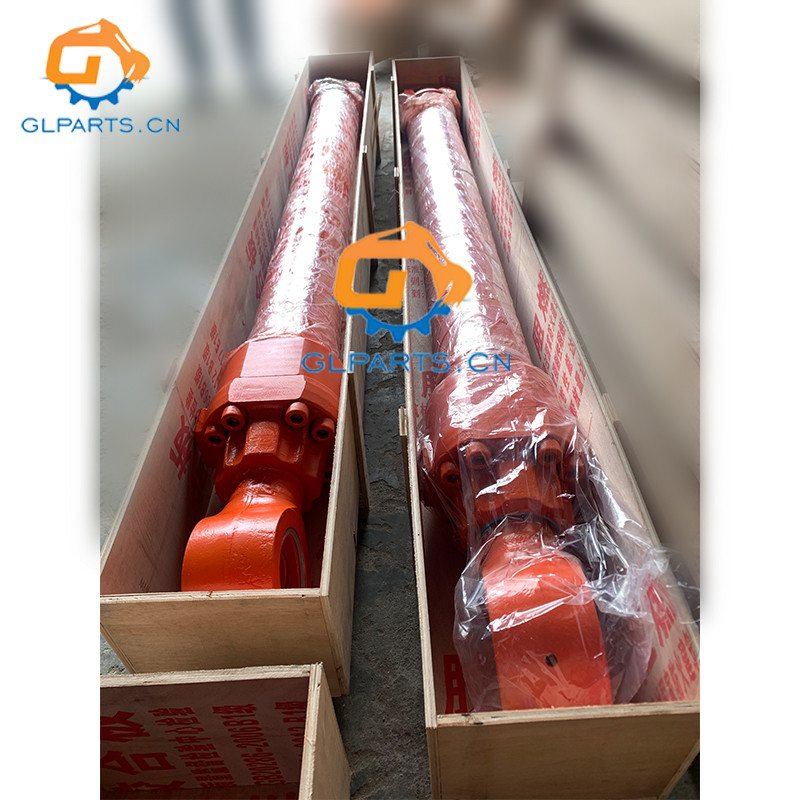

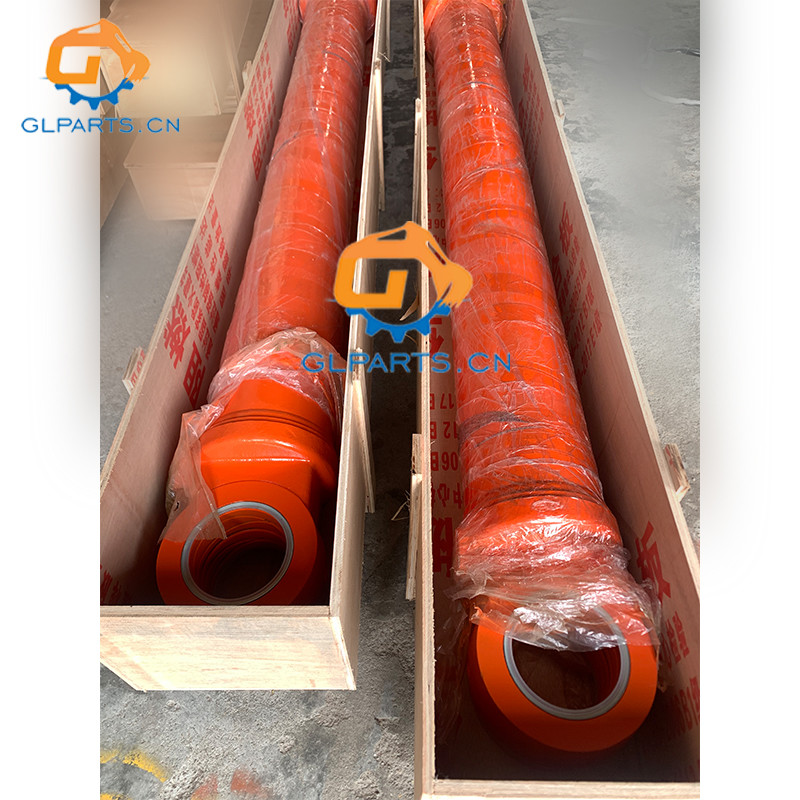

ZX330-3G Excavator Hydraulic Cylinder 4686333 4686332 For Hitachi Boom Cylinder

1
MOQ
Negotiation
Price
ZX330-3G Excavator Hydraulic Cylinder 4686333 4686332 For Hitachi Boom Cylinder
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Boom Hydraulic Cylinder
Product Alias: Excavator Hydraulic Boom Cylinder
Part Number: 4686333 4686332
Surface Treatment: Piston Rod Hard Chromium Plating Cylinder Tube ,Inner Honed
Seal Brand: For Japan NOK And US SKF
Seal Material: PU
Testing: 100% Pressure Testing Before Delivery
Factory Direct Supply: Yes
Highlight:

ZX330-3G Excavator Hydraulic Cylinder

,

4686332 hitachi boom cylinder

,

Excavator Hydraulic Cylinder 4686333

Basic Infomation
Place of Origin: Made In China
Brand Name: Glparts
Certification: ISO9001
Model Number: ZX330-3G
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 7 Days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 2000pieces/month
Product Description

Excavator Hydraulic Cylinder ZX330-3G Boom Cylinder 4686333 4686332 For Hitachi




Product Description




Product Name

Excavator Boom Hydraulic Cylinder

Model

ZX330-3G

Compatible With Other Models

ZX330-3G ZX330LC-3G ZX350H-3G ZX350K-3G ZX350LCH-3G ZX350LCK-3G ZX360H-3G

Temperature Range

-20-80°C

Part Number



4686333 4686332

Pressure Range 21 MPa to 35 MPa
Dimensions Customized

OEM

Yes



Service Stage Details
PreSales Service Free consultation and technical advice.
  Customization options for dimensions and performance based on customer requirements.
InSales Service Fast production and delivery times.
  Real-time updates on manufacturing and shipment status.
AfterSales Service Warranty on manufacturing defects.
  Technical support for installation and maintenance.
  Replacement parts available for longterm support.

ps.If you are looking for other hydraulic cylinders for the ZX330-3G, please contact us for a quote



List Of Spare Parts (4686333 4686332)




Pos Part No Qty Parts name
  4686333 [1] CYL BOOM (R)
1 1197201 [1] TUBE CYL ASSY
1A +++++++ [1] TUBE CYL
1B 4381855 [2] BUSHING
2 1197202 [1] ROD PISTON ASSY
2A +++++++ [1] ROD PISTON
2B 4381855 [2] BUSHING
3 1197203 [1] HEAD CYL
4 373405 [1] BUSHING
5 237205 [1] RING
6 926814 [1] RING
7 926815 [1] PACKING U-RING
8 926808 [1] RING BACK-UP
9 492216 [1] RING WIPER
10 A811145 [1] O-RING
11 482606 [1] RING BACK-UP
12 M342480 [8] BOLT SOCKET
13 973204 [1] BRG CUSHION
14 833405 [1] SEAL CUSHION
15 867306 [1] PISTON
16 237218 [1] RING SEAL
16A +++++++ [1] RING SEAL
16B +++++++ [1] O-RING
17 482609 [2] RING BACK-UP
18 1102003 [2] RING SLIDE
19 237220 [2] RING SLIDE
20 373414 [1] SHIM
21 867308 [1] NUT
22 352715 [1] SCREW SET
23 104404 [1] BALL
25 4337631 [4] RING WIPER
26 1197206 [1] PIPE
27 1197207 [1] PIPE
28 984614 [2] O-RING
29 M341236 [8] BOLT SOCKET
30-36 1197208 [1] KIT BAND
30 1197209 [1] BAND
31 387311 [1] BAND
32 J901035 [2] BOLT
33 A590910 [2] WASHER
34 236915 [2] HOLDER
35 236916 [1] BOLT
36 A590914 [1] WASHER SPRING
37 J75481 [1] FITTING GREASE
100 4686321 [1] KIT SEAL

ZX330-3G Excavator Hydraulic Cylinder 4686333 4686332 For Hitachi Boom Cylinder 0

*Note:Suitable for different models. Please contact us for the specific part number,part number information is being updated



Company Information






GuangZhou GuoLi Engineering Machinery Co., Ltd., with over 16 years of experience in excavator hydraulic cylinders, is a foreign trade company specializing in a wide range of products, including crawler excavator arm cylinders, boom cylinders, bucket cylinders, cylinder tubes, cylinder rods, custom hydraulic cylinders, seal kits, hydraulic pumps, and electric parts, all designed for various excavator models. Our products have been exported to over 100 countries and regions worldwide.



Factory Tour



Our main product, excavator cylinders, is produced through a complete hydraulic cylinder production line, from design to manufacturing. With over ten years of experience, we’ve upgraded our offerings to multi-stage hydraulic cylinders. We focus on cylinder customization and produce a variety of domestic and imported excavator cylinders. Using advanced CNC lathes, grinders, and assembly equipment, we strictly follow ISO quality standards throughout production.


Piston Rod Production Process





Feature Description
Material Tempered steel
Surface Treatment Induction hardened before chrome plating to prevent bending and scratching
Rust Resistance Resists rust for over 100 hours in salt spray tests
Production Process Produced and electroplated in-house
Finish Mirror finish technology



ZX330-3G Excavator Hydraulic Cylinder 4686333 4686332 For Hitachi Boom Cylinder 2

Automatic Welding Process





Feature Description
Welding Method Fully automated welding for consistency and integrity
Craftsmanship Lean welding craft ensures strong joint strength and eliminates defects
Weld Seam Quality Weld seam matches the appearance of original parts
Durability Welded parts are not easy to fall off



ZX330-3G Excavator Hydraulic Cylinder 4686333 4686332 For Hitachi Boom Cylinder 3

Finished Product Warehouse Display



ZX330-3G Excavator Hydraulic Cylinder 4686333 4686332 For Hitachi Boom Cylinder 4





Exhibition Showcase




Our Presence at Major Exhibitions: 2023 Malaysia & 2024 Shanghai Bauma



Exhibition With Cooperated Clients






Certificates






Certification


FAQ






1.How can I be sure the part will fit my excavator ?

  • Give us correct model number /machine serial number /any numbers on the parts itself.

  • Or measure the parts give us dimension or drawing.



2.What material do you use on hydraulic cylinder?

  • High frequency quenching No.40 manganese steel as rod material so the cylinder rod has better bending resistance.

  • No.25 manganese steel as tube material ,so the tube has better wear resistance,

    High-strength hardened steel as rod head and tube head ,so the cylinder head and rod head more durable.

  • Name-brand seal kits to reduce the hydraulic cylinder oil leakage rate.



3.How long can an order delivery?

  • For some often used models of excavator hydraulic cylinder , we have in stock, within 7 days .

  • For any order less than one container takes about 2 weeks to finish; Order of 1-2 container takes 4 -6weeks.

  • At busy manufacturing season, manufacturing time needs more which can confirm by discussion.



4.How to pay?

  • Order less than 3000USD, full payment at order, Order over USD3000 value ,50% deposited in to start,

    50% balance paid to deliver,inspection service accepted.

  • For customized order, 70%payment as deposit ,30% balance paid to deliver.



5.How to delivery?

  • If you have shipping agent ,we will cooperate with your agent to arrange shipment .

  • If not , we have good relationships with shipping companies, express suppliers.

  • For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)
