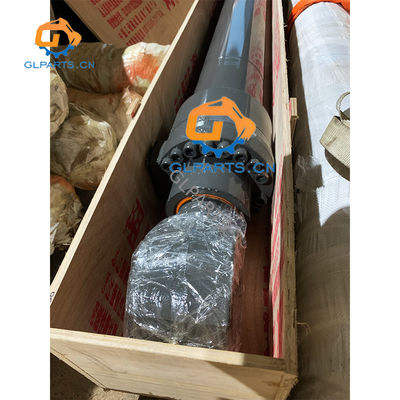

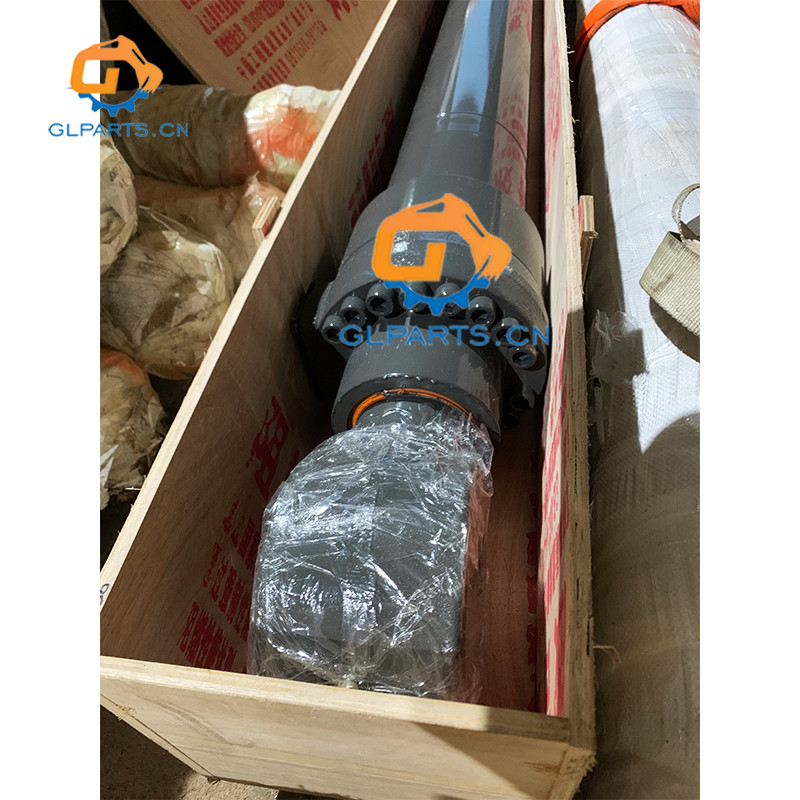

EC360 EC360B EC330B Excavator Bucket Cylinder VOE14501282 VOE14523667 For Volvo

1
MOQ
Negotiation
Price
EC360 EC360B EC330B Excavator Bucket Cylinder VOE14501282 VOE14523667 For Volvo
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Excavator Hydraulic Bucket Cylinder Assy
Product Alias: Volvo Excavator Hydraulic Parts
Part Number: 14501282 14523667
Surface Treatment: Piston Rod Hard Chromium Plating Cylinder Tube ,Inner Honed
Seal Brand: For Japan NOK And US SKF
Seal Material: PU
Testing: 100% Pressure Testing Before Delivery
Factory Direct Supply: Yes
Highlight:

EC330B Excavator Bucket Cylinder

,

VOE14523667 Excavator Bucket Cylinder

,

VOE14523667 volvo excavator hydraulic cylinder

Basic Infomation
Place of Origin: Made In China
Brand Name: Glparts
Certification: ISO9001
Model Number: EC360 EC360B EC330B
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 7 Days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 2000pieces/month
Product Description

EC360 EC360B EC330B Excavator Bucket Cylinder VOE14501282 VOE14523667 For Volvo Parts




Product Description






Product Name

Bucket Hydraulic Cylinder

Model

EC360 EC360B EC330B

Other Bucket Part Number

VOE14501282 VOE14523667 VOE14563823 VOE14572517  VOE14629600

14501282 14523667 14563823  14572517 14629600

Temperature Range

-20-80°C

Part Number



14501282 14523667

Pressure Range 21 MPa to 35 MPa
Dimensions Customized

OEM

Yes





Service Stage Details
PreSales Service Free consultation and technical advice
Customization options for dimensions and performance based on customer requirements
InSales Service Fast production and delivery times
Real-time updates on manufacturing and shipment status
AfterSales Service Warranty on manufacturing defects
Technical support for installation and maintenance

ps.If you are looking for other hydraulic cylinders for the EC360 EC360B, please contact us for a quote



List Of Spare Parts (14501282)




Pos Part No Qty Parts name Comments
  VOE14501282 [1] Cylinder S/N 10001-10692
  VOE14523667   Cylinder S/N 10693-12657 S/N 80001-80899
  VOE14563823   Bucket cylinder S/N 12658-12815 S/N 80900-80940
  VOE14572517   Bucket cylinder S/N 12816-16130 S/N 30001-36322
  VOE14629600   Bucket cylinder S/N 16131- S/N 36323-
1 VOE14884935 [1] Lock washer
1 VOE14530666   Washer
2 VOE14502439 [1] Cushion
3 SA1146-06890 [1] Lock nut
4 VOE14502437 [1] Head
5 SA1146-06870 [1] Pad
6 SA1146-08120 [1] Seal
7   [1] Tube
8 VOE14560206 [2] Seal
9 VOE14517940 [1] Bushing
10 SA9612-10040 [1] Bearing
11 VOE14563827 [1] Rod
11 VOE14627083   Rod
12 VOE14560209 [2] Seal
13 VOE914167 [1] Lubricating nipple
14 VOE14517186 [1] Bushing
15 VOE14502440 [1] Seal
16 VOE14502441 [2] Ring
17 VOE14502442 [2] Seal
18 VOE14502535 [1] Piston
19 VOE13948937 [16] Screw
20 VOE13963059 [1] Set screw
21 VOE990650 [1] O-ring
22 VOE990594 [1] O-ring
23 VOE14884915 [1] Retaining ring
24 VOE14884928 [1] Retaining ring
25 SA9563-21000 [1] Seal
26 SA9564-21000 [1] Seal
27 SA9566-31350 [1] Back-up ring
28 SA9566-40900 [2] Back-up ring
29 SA9567-21000 [1] Back-up ring
  VOE14589141 [1] Sealing kit

EC360 EC360B EC330B Excavator Bucket Cylinder VOE14501282 VOE14523667 For Volvo 0

*Note:Suitable for different models. Please contact us for the specific part number,part number information is being updated



Company Information






GuangZhou GuoLi Engineering Machinery Co., Ltd., with over 16 years of experience in excavator hydraulic cylinders, is a foreign trade company specializing in a wide range of products, including crawler excavator arm cylinders, boom cylinders, bucket cylinders, cylinder tubes, cylinder rods, custom hydraulic cylinders, seal kits, hydraulic pumps, and electric parts, all designed for various excavator models. Our products have been exported to over 100 countries and regions worldwide.



Factory Tour



Our main product, excavator cylinders, is produced through a complete hydraulic cylinder production line, from design to manufacturing. With over ten years of experience, we’ve upgraded our offerings to multi-stage hydraulic cylinders. We focus on cylinder customization and produce a variety of domestic and imported excavator cylinders. Using advanced CNC lathes, grinders, and assembly equipment, we strictly follow ISO quality standards throughout production.


Piston Rod Production Process





Feature Description
Material Tempered steel
Surface Treatment Induction hardened before chrome plating to prevent bending and scratching
Rust Resistance Resists rust for over 100 hours in salt spray tests
Production Process Produced and electroplated in-house
Finish Mirror finish technology



EC360 EC360B EC330B Excavator Bucket Cylinder VOE14501282 VOE14523667 For Volvo 2

Automatic Welding Process





Feature Description
Welding Method Fully automated welding for consistency and integrity
Craftsmanship Lean welding craft ensures strong joint strength and eliminates defects
Weld Seam Quality Weld seam matches the appearance of original parts
Durability Welded parts are not easy to fall off



EC360 EC360B EC330B Excavator Bucket Cylinder VOE14501282 VOE14523667 For Volvo 3

Finished Product Warehouse Display



EC360 EC360B EC330B Excavator Bucket Cylinder VOE14501282 VOE14523667 For Volvo 4





Exhibition Showcase




Our Presence at Major Exhibitions: 2023 Malaysia & 2024 Shanghai Bauma



Exhibition With Cooperated Clients






Certificates






Certification


FAQ






1.How can I be sure the part will fit my excavator ?

  • Give us correct model number /machine serial number /any numbers on the parts itself.

  • Or measure the parts give us dimension or drawing.



2.What material do you use on hydraulic cylinder?

  • High frequency quenching No.40 manganese steel as rod material so the cylinder rod has better bending resistance.

  • No.25 manganese steel as tube material ,so the tube has better wear resistance,

    High-strength hardened steel as rod head and tube head ,so the cylinder head and rod head more durable.

  • Name-brand seal kits to reduce the hydraulic cylinder oil leakage rate.



3.How long can an order delivery?

  • For some often used models of excavator hydraulic cylinder , we have in stock, within 7 days .

  • For any order less than one container takes about 2 weeks to finish; Order of 1-2 container takes 4 -6weeks.

  • At busy manufacturing season, manufacturing time needs more which can confirm by discussion.



4.How to pay?

  • Order less than 3000USD, full payment at order, Order over USD3000 value ,50% deposited in to start,

    50% balance paid to deliver,inspection service accepted.

  • For customized order, 70%payment as deposit ,30% balance paid to deliver.



5.How to delivery?

  • If you have shipping agent ,we will cooperate with your agent to arrange shipment .

  • If not , we have good relationships with shipping companies, express suppliers.

  • For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)
