Excavator Hydraulic Bucket Cylinder Assy ZX280-5G ZX280LC-5G ZX290LC-5B ZX290LCN-5B 4708209

1
MOQ
Negotiation
Price
Excavator Hydraulic Bucket Cylinder Assy ZX280-5G ZX280LC-5G ZX290LC-5B ZX290LCN-5B 4708209
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Bucket Cylinder Assy
Product Alias: Excavator Hydraulic Bucket Cylinder
Part Number: 4708209
Surface Treatment: Piston Rod Hard Chromium Plating Cylinder Tube ,Inner Honed
Seal Brand: For Japan NOK And US SKF
Seal Material: PU
Testing: 100% Pressure Testing Before Delivery
Factory Direct Supply: Yes
Basic Infomation
Place of Origin: Made In China
Brand Name: Glparts
Certification: ISO9001
Model Number: ZX280 ZX280-5G
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 7 Days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 2000pieces/month
Product Description

Excavator Hydraulic Bucket Cylinder Assy ZX280-5G ZX280LC-5G ZX290LC-5B ZX290LCN-5B 4708209



Product Description



Product Name

Excavator Bucket Hydraulic Cylinder Assy

Model

ZX280 ZX280-5G

Compatible With Other Models

ZX280LC-5G ZX290LC-5B ZX290LCN-5B ZX280-5G

Temperature Range

-20-80°C

Part Number

4708209

Pressure Range21 MPa to 35 MPa
DimensionsCustomized

OEM

Yes


Service StageDetails
PreSales ServiceFree consultation and technical advice.

Customization options for dimensions and performance based on customer requirements.
InSales ServiceFast production and delivery times.

Real-time updates on manufacturing and shipment status.
AfterSales ServiceWarranty on manufacturing defects.

Technical support for installation and maintenance.

Replacement parts available for longterm support.

ps.If you are looking for other hydraulic cylinders for the ZX280, please contact us for a quote

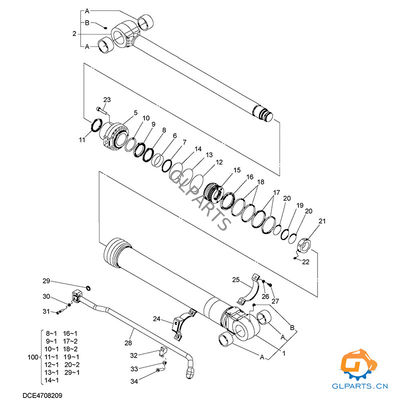

List Of Spare Parts (4708209)



PosPart NoQtyParts name

4708209[1]CYL BUCKET
1XB00002499[1]TUBE CYL
1AXB00002500[2]BUSHING
1BXB00000361[1]FITTING GREASE
2XB00002501[1]ROD PISTON
2AXB00002502[2]BUSHING
2BJ75481[1]FITTING GREASE
5-14XB00002503[1]COVER
5XB00002504[1]COVER
6XB00002051[1]BUSHING
7XB00002052[1]RING RETAINING
8XB00002053[1]SEAL
9XB00002054[1]PACKING U-RING
10YA00008824[1]RING BACK-UP
11XB00002505[1]SEAL DUST
12XB00002462[1]O-RING
13XB00002463[1]RING BACK-UP
14A811135[1]O-RING
15-20XB00002506[1]ASSY PISTON
15YA00009047[1]PISTON
16YA00008822[1]RING SEAL
17XB00002465[2]RING WEAR
18YA00001449[2]RING WEAR
19XB00002466[1]O-RING
20XB00002467[2]RING BACK-UP
21XB00002468[1]NUT
22XB00000632[2]SCREW SET
23XB00002067[14]BOLT SOCKET
24XB00002507[1]BAND
25XB00002472[1]BAND
26A590912[2]WASHER SPRING
27J901240[2]BOLT
28XB00002508[1]PIPE
29984614[1]O-RING
30A590912[4]WASHER SPRING
31XB00001961[4]BOLT SOCKET
321237331[1]CLAMP PIPE
33A590916[1]WASHER SPRING
34J901670[1]BOLT
100YA00006595[1]KIT SEAL

Excavator Hydraulic Bucket Cylinder Assy ZX280-5G ZX280LC-5G ZX290LC-5B ZX290LCN-5B 4708209 0

*Note:Suitable for different models. Please contact us for the specific part number,part number information is being updated


Company Information



GuangZhou GuoLi Engineering Machinery Co., Ltd., with over 16 years of experience in excavator hydraulic cylinders, is a foreign trade company specializing in a wide range of products, including crawler excavator arm cylinders, boom cylinders, bucket cylinders, cylinder tubes, cylinder rods, custom hydraulic cylinders, seal kits, hydraulic pumps, and electric parts, all designed for various excavator models. Our products have been exported to over 100 countries and regions worldwide.

Factory Tour


Our main product, excavator cylinders, is produced through a complete hydraulic cylinder production line, from design to manufacturing. With over ten years of experience, we’ve upgraded our offerings to multi-stage hydraulic cylinders. We focus on cylinder customization and produce a variety of domestic and imported excavator cylinders. Using advanced CNC lathes, grinders, and assembly equipment, we strictly follow ISO quality standards throughout production.


Piston Rod Production Process


FeatureDescription
MaterialTempered steel
Surface TreatmentInduction hardened before chrome plating to prevent bending and scratching
Rust ResistanceResists rust for over 100 hours in salt spray tests
Production ProcessProduced and electroplated in-house
FinishMirror finish technology


Excavator Hydraulic Bucket Cylinder Assy ZX280-5G ZX280LC-5G ZX290LC-5B ZX290LCN-5B 4708209 2

Automatic Welding Process


FeatureDescription
Welding MethodFully automated welding for consistency and integrity
CraftsmanshipLean welding craft ensures strong joint strength and eliminates defects
Weld Seam QualityWeld seam matches the appearance of original parts
DurabilityWelded parts are not easy to fall off


Excavator Hydraulic Bucket Cylinder Assy ZX280-5G ZX280LC-5G ZX290LC-5B ZX290LCN-5B 4708209 3

Finished Product Warehouse Display


Excavator Hydraulic Bucket Cylinder Assy ZX280-5G ZX280LC-5G ZX290LC-5B ZX290LCN-5B 4708209 4



Exhibition Showcase



Our Presence at Major Exhibitions: 2023 Malaysia & 2024 Shanghai Bauma


Exhibition With Cooperated Clients




Certificates



Certification


FAQ



1.How can I be sure the part will fit my excavator ?

  • Give us correct model number /machine serial number /any numbers on the parts itself.

  • Or measure the parts give us dimension or drawing.


2.What material do you use on hydraulic cylinder?

  • High frequency quenching No.40 manganese steel as rod material so the cylinder rod has better bending resistance.

  • No.25 manganese steel as tube material ,so the tube has better wear resistance,

    High-strength hardened steel as rod head and tube head ,so the cylinder head and rod head more durable.

  • Name-brand seal kits to reduce the hydraulic cylinder oil leakage rate.


3.How long can an order delivery?

  • For some often used models of excavator hydraulic cylinder , we have in stock, within 7 days .

  • For any order less than one container takes about 2 weeks to finish; Order of 1-2 container takes 4 -6weeks.

  • At busy manufacturing season, manufacturing time needs more which can confirm by discussion.


4.How to pay?

  • Order less than 3000USD, full payment at order, Order over USD3000 value ,50% deposited in to start,

    50% balance paid to deliver,inspection service accepted.

  • For customized order, 70%payment as deposit ,30% balance paid to deliver.


5.How to delivery?

  • If you have shipping agent ,we will cooperate with your agent to arrange shipment .

  • If not , we have good relationships with shipping companies, express suppliers.

  • For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)
