Hydraulic Arm Cylinder 4388224 For Hitachi ZX70 ZaX70 Excavator Parts
Product Description
Product Name | Arm Cylinder For Hitachi Hydraulic Parts |
Model | ZX70 ZaX70 |
| Compatible With Other Models | EX60-5(LC), EX60BUN-5, EX70LCK-5, ZX70, ZX75US, ZX80LCK, ZX80SB-HCME |
Temperature Range | -20-80°C |
Part Number | 4388224 4446255 4458862 |
| Pressure Range | 21 MPa to 35 MPa |
| Dimensions | Customized |
OEM | Yes |
| Service Stage | Details |
| PreSales Service | Free consultation and technical advice. |
| Customization options for dimensions and performance based on customer requirements. | |
| InSales Service | Fast production and delivery times. |
| Real-time updates on manufacturing and shipment status. | |
| AfterSales Service | Warranty on manufacturing defects. |
| Technical support for installation and maintenance. | |
| Replacement parts available for longterm support. |
ps.If you are looking for other hydraulic cylinders for the ZX70, please contact us for a quote

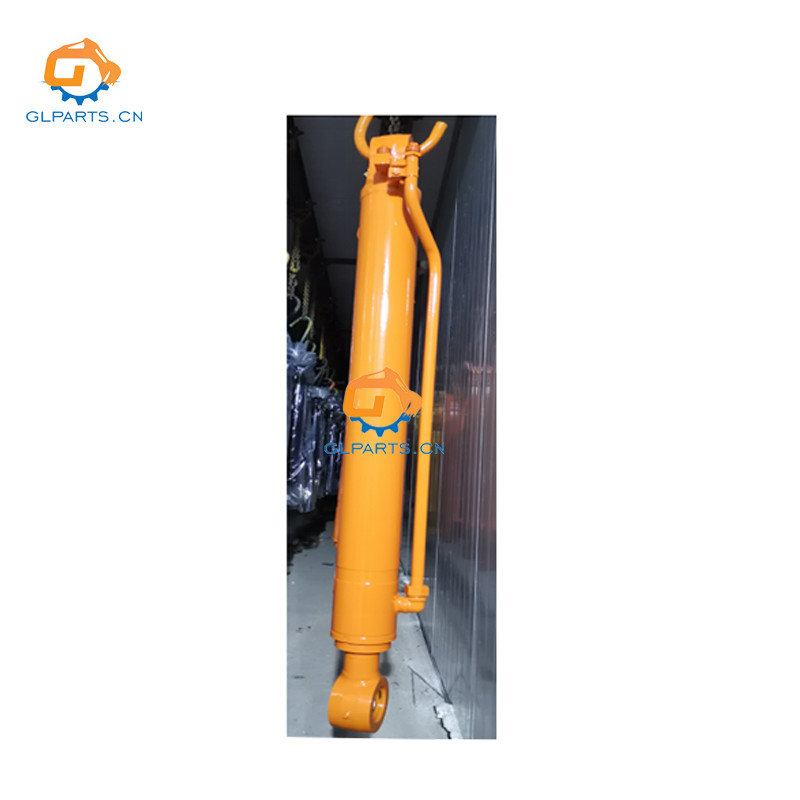

ZX70 Arm Cylinder
| Brand/Model | For Hitachi ZAX70 Arm Cylinder Assy – Original – Core Included |
| Installation Distance | 1300 |
| Stroke | 905 |
| Rod Head Pin Hole | 55 |
| Rod Head Thickness | 70 |
| Rod Diameter | 60 |
| Rod Tail Pin Hole | 55 |
| Rod Tail Thickness | 70 |
| Cylinder Bore | 95 |
| Oil Port/Usage | - |

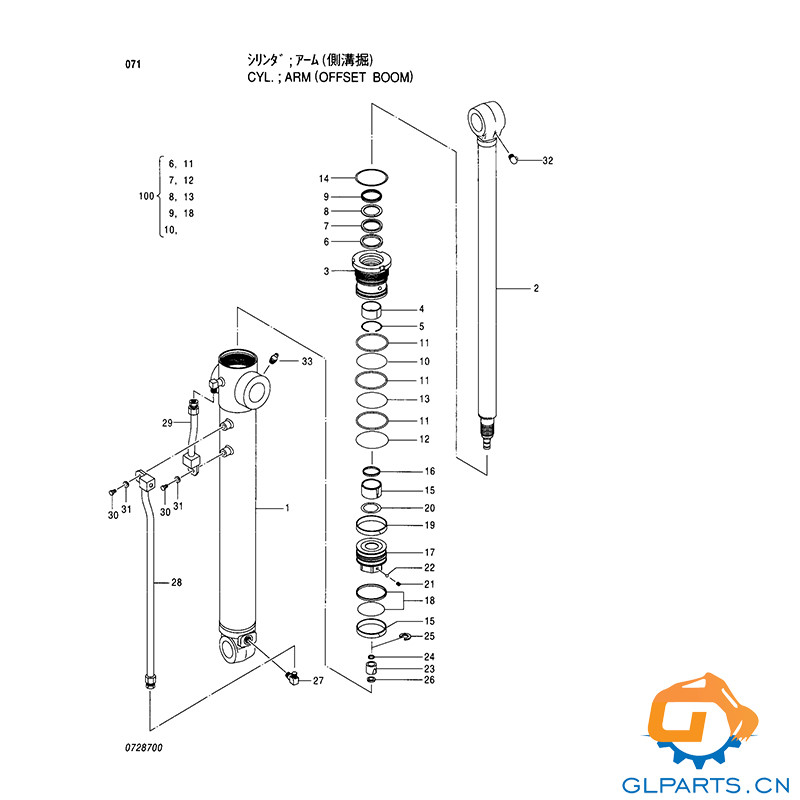

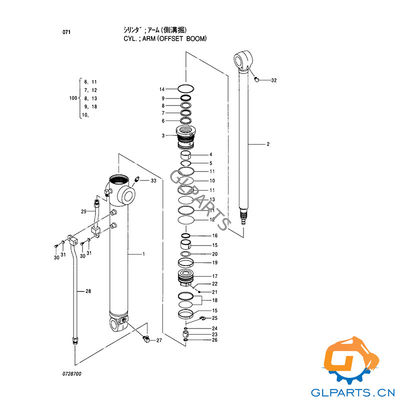

List Of Spare Parts (4388224 )
| Pos | Part No | Qty | Parts name | Comments |
| 4388224 | [1] | CYL. ARM | 728700 | |
| 1 | 728701 | [1] | TUBE CYL. | |
| 2 | 728702 | [1] | ROD PISTON | |
| 3 | 728703 | [1] | HEAD CYL. | |
| 4 | 444706 | [1] | BUSHING | |
| 5 | 225704 | [1] | RING RETAINING | |
| 6 | 225714 | [1] | RING | |
| 7 | 225711 | [1] | PACKING U-RING | |
| 8 | 225712 | [1] | RING BACK-UP | |
| 9 | 444715 | [1] | RING WIPER | |
| 10 | A811090 | [1] | O-RING | |
| 11 | 310606 | [3] | RING BACK-UP | |
| 12 | A810095 | [1] | O-RING | |
| 13 | A811085 | [1] | O-RING | |
| 14 | 4043327 | [1] | WASHER LOCK | |
| 15 | 728704 | [1] | BRG. CUSHION | |
| 16 | 728705 | [1] | SEAL CUSHION | |
| 17 | 728706 | [1] | PISTON | |
| 18 | 310608 | [1] | RING SEAL | |
| 19 | 333007 | [2] | RING SLIDE | |
| 20 | 728707 | [1] | SHIM | |
| 21 | 310612 | [1] | SCREW SET | |
| 22 | 111818 | [1] | BALL STEEL | |
| 23 | 444708 | [1] | BRG. CUSHION | |
| 24 | 714904 | [1] | SEAL CUSHION | |
| 25 | 444710 | [1] | RING RETAINING | |
| 26 | 396211 | [2] | STOPPER | |
| 27 | 714804 | [1] | ELBOW | |
| 28 | 728708 | [1] | PIPE | |
| 29 | 728709 | [1] | PIPE | |
| 30 | 714807 | [2] | BOLT | |
| 31 | 714808 | [2] | WASHER | |
| 32 | 159411 | [1] | FITTING GREASE | |
| 33 | J75481 | [2] | FITTING GREASE | |
| 100 | 4415584 | [1] | KIT SEAL |
*Note:Suitable for different models. Please contact us for the specific part number,part number information is being updated
