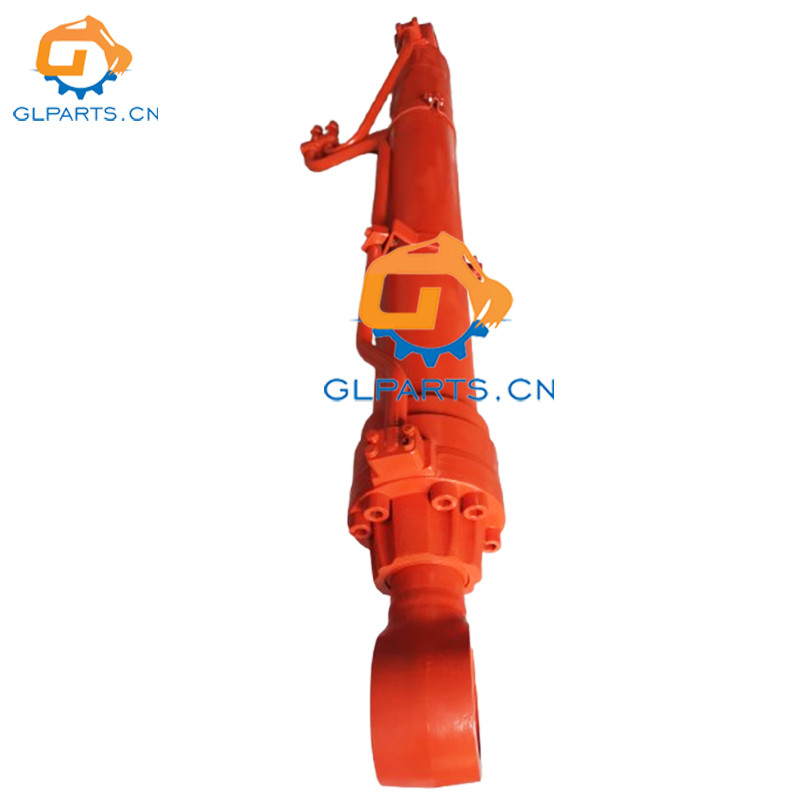

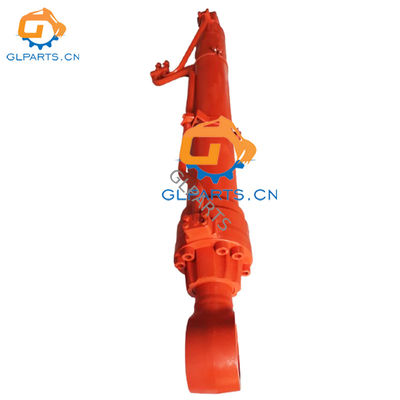

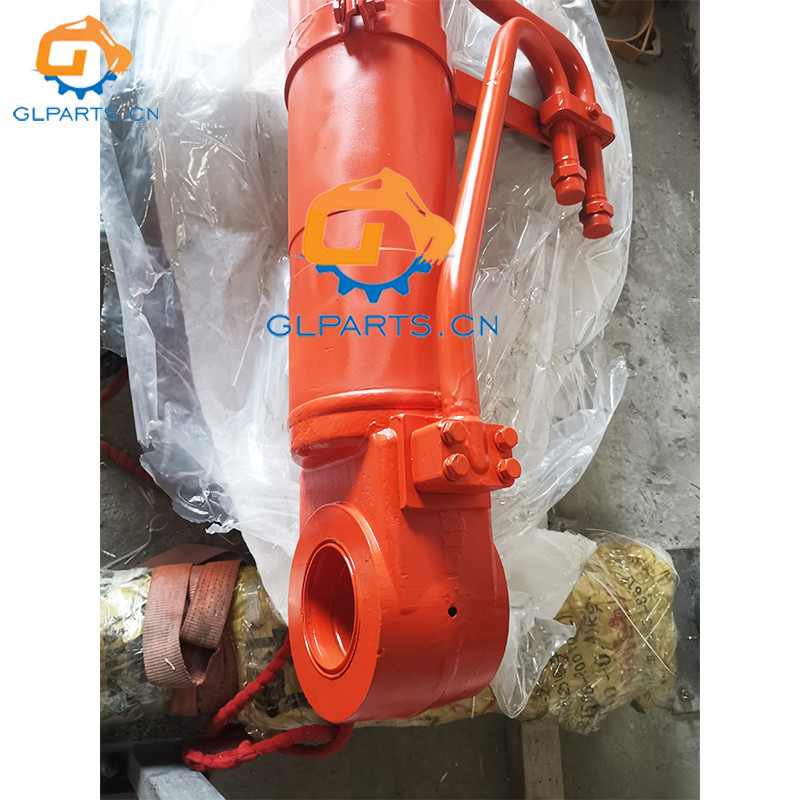

4390024 9138785 Bucket Cylinder For Hitachi ZAX450 EX450 Excavator Hydraulic Cylinder
Product Description
|
Product Name |
Bucket Excavator Hydraulic Cylinder |
|
Model |
ZAX450 EX450 |
| Comoatible With Other Models | EX400-3C, EX400-3, EX400-5, EX450H-5, ZX450, ZX450H, ZX460LCH-AMS, ZX460LCH-HCME, ZX480MT, ZX480MTH, ZX500LC, ZX500LCH |
|
Temperature Range |
-20-80°C |
|
Part Number |
4658553 4390024 9138785 |
| Pressure Range | 21 MPa to 35 MPa |
| Dimensions | Customized |
|
OEM |
Yes |
| Service Stage | Details |
| PreSales Service | Free consultation and technical advice. |
| Customization options for dimensions and performance based on customer requirements. | |
| InSales Service | Fast production and delivery times. |
| Real-time updates on manufacturing and shipment status. | |
| AfterSales Service | Warranty on manufacturing defects. |
| Technical support for installation and maintenance. | |
| Replacement parts available for longterm support. |
ps.If you are looking for other hydraulic cylinders for the ZX450, please contact us for a quote
List Of Spare Parts (4664871)
4390024
| Pos | Part No | Qty | Parts name | Comments |
| 4390024 | [1] | CYL. BUCKET | ||
| 1-33 | 4391716 | [1] | CYL.(PIPELESS) | |
| 1 | 704401 | [1] | TUBE CYL. ASSY | |
| 1A | +++++++ | [1] | TUBE CYL. | |
| 1B | 352905 | [1] | BUSHING PIN | |
| 2 | 704402 | [1] | ROD PISTON ASSY | |
| 2A | +++++++ | [1] | ROD PISTON | |
| 2B | 420102 | [1] | BUSHING PIN | |
| 3 | 704403 | [1] | HEAD CYL. | |
| 4 | 450506 | [1] | BUSHING | |
| 5 | 133103 | [1] | RING RETAINING | |
| 6 | 450507 | [1] | RING SEAL | |
| 7 | 4069711 | [1] | PACKING U-RING | |
| 8 | 262403 | [1] | RING BACK-UP | |
| 9 | 450508 | [1] | RING SLIDE | |
| 10 | 4438199 | [1] | RING WIPER | I 0450519 |
| 10 | 450519 | [1] | RING WIPER | |
| 11 | A811160 | [1] | O-RING | |
| 12 | 4170546 | [1] | RING BACK-UP | |
| 13 | 191412 | [8] | BOLT SOCKET | |
| 14 | 704404 | [1] | BRG. CUSHION | |
| 16 | 704405 | [1] | PISTON | |
| 17 | 4170547 | [1] | RING SEAL ASSY | |
| 18 | 420109 | [2] | RING SLIDE | |
| 19 | 259307 | [2] | RING SLIDE | |
| 20 | 443902 | [1] | NUT | |
| 22 | 353011 | [1] | BALL STEEL | |
| 23 | 353012 | [1] | SCREW SET | |
| 25 | 420403 | [2] | RING WIPER | |
| 27 | 420110 | [2] | RING WIPER | |
| 33 | J75481 | [1] | FITTING GREASE | |
| 58 | 420404 | [1] | PIPE | |
| 59 | 420405 | [1] | JOINT | |
| 60 | 150616 | [8] | BOLT SOCKET | |
| 61 | 984614 | [2] | O-RING | |
| 64 | 309219 | [2] | CLAMP PIPE | |
| 65 | 237417 | [2] | BOLT | |
| 66 | 208516 | [2] | WASHER SPRING | |
| 67 | 352719 | [2] | BAND | |
| 68 | 352721 | [2] | BAND | |
| 69 | 408815 | [4] | BOLT | |
| 70 | 325913 | [4] | WASHER | |
| 100 | 4438681 | [1] | KIT SEAL |
9138785
| Pos | Part No | Qty | Parts name | Comments |
| 9138785 | [1] | CYL. BUCKET | ||
| 00-35 | 9127655 | [1] | CYL. (PIPELESS) | |
| 0 | 7017429 | [1] | TUBE CYL. | Y 4646017 |
| 0 | 4646017 | [1] | TUBE CYL. | |
| 00A | 3031789 | [1] | BUSHING | |
| 2 | 7027219 | [1] | ROD PISTON | Y 4645920 |
| 2 | 4645920 | [1] | ROD PISTON | |
| 02A | 3036659 | [1] | BUSHING | |
| 3 | 1016387 | [1] | HEAD CYL. | |
| 5 | M342480 | [8] | BOLT SOCKET | |
| 6 | 4171482 | [1] | SEAL DUST | |
| 7 | 4171484 | [1] | SEAL | |
| 9 | 4264981 | [1] | RING | |
| 12 | 4087852 | [1] | O-RING | |
| 13 | 487862 | [1] | RING BACK-UP | |
| 14 | 4264982 | [1] | RING RETAINING | |
| 15 | 4284535 | [1] | BUSHING | |
| 16 | 4194625 | [1] | RING CUSHION | |
| 18 | 3036603 | [1] | PISTON | |
| 19 | 4185247 | [2] | RING TEFLON | |
| 20 | 4185249 | [2] | RING WEAR | |
| 21 | 4185245 | [1] | RING SEAL | |
| 23 | 3039348 | [1] | NUT | |
| 24 | 4201806 | [1] | SCREW SET | |
| 35 | J75581 | [2] | FITTING GREASE | |
| 126 | 3046126 | [1] | FLANGE | |
| 127 | 4198799 | [1] | ELBOW S | |
| 127A | 4506429 | [1] | O-RING | |
| 129 | 8044732 | [1] | PIPE | |
| 131 | M341245 | [6] | BOLT SOCKET | |
| 132 | M341260 | [2] | BOLT SOCKET | |
| 133 | A811035 | [2] | O-RING | |
| 138 | 3043349 | [2] | CLAMP | |
| 139 | 8043036 | [2] | CLAMP | |
| 143 | J011035 | [4] | BOLT SEMS | |
| 145 | 4174241 | [2] | CLAMP PIPE | |
| 146 | J011025 | [4] | BOLT SEMS | |
| 148 | 4260204 | [2] | CAP | |
| 200 | 9123265 | [1] | KIT SEAL |
*Note:Suitable for different models. Please contact us for the specific part number,part number information is being updated
