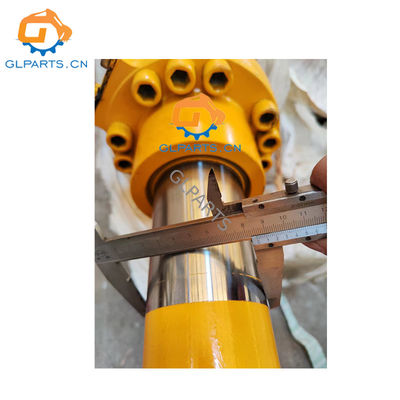

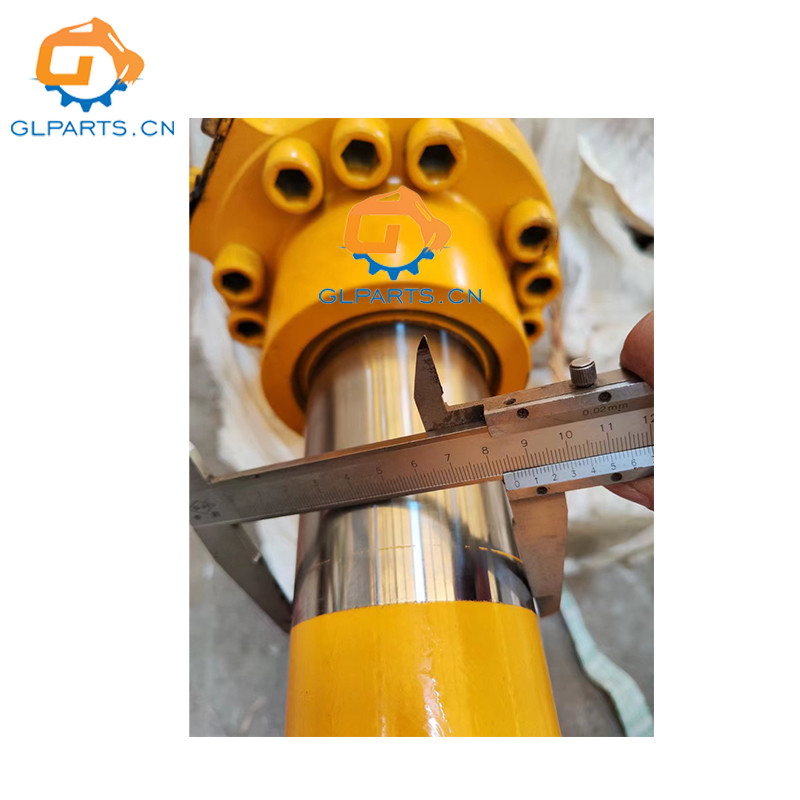

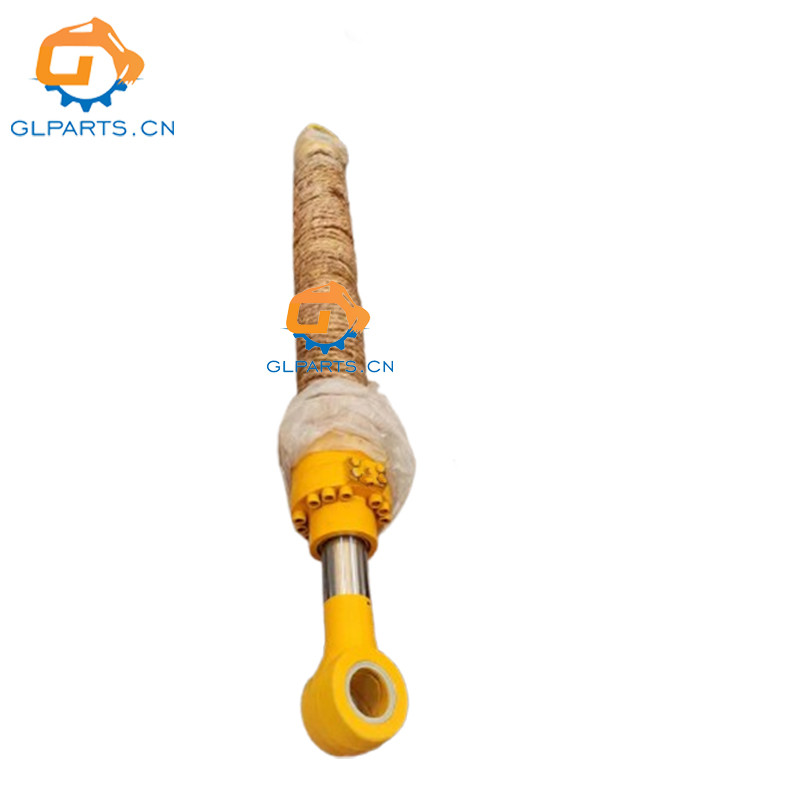

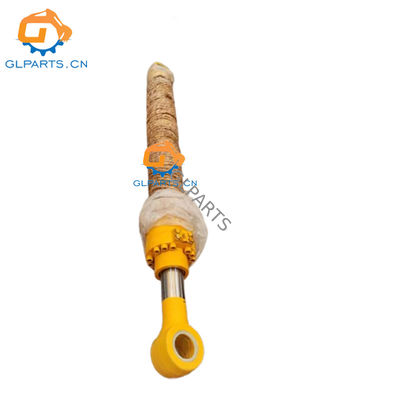

R210LC-9 Bucket Cylinder Assy 31Q6-60110 Hyundai Excavator Parts
Overview
Discover the high-performance R210LC-9 Bucket Cylinder Assy 31Q6-60110, designed specifically for Hyundai excavators. This premium hydraulic cylinder for excavators ensures smooth operation and long-lasting durability in demanding construction and heavy machinery tasks.
Product Description
|
Product Name |
Excavator Hydraulic Bucket Cylinder |
|
Model |
R210LC-9 |
|
Temperature Range |
-30-100°C |
|
Part Number |
31Q6-60110 |
| Pressure Range | 21 MPa to 35 MPa |
| Dimensions | Customized |
|
OEM |
Yes |
Applications:
Excavator Buckets
Heavy Machinery
Construction Sites
Mining Operations
List Of Spare Parts
| Pos. | Part No | Qty | Parts Name | Comments |
| * | 31Q6-60110 | [1] | BUCKET CYLINDER ASSY | |
| * | 31Q6-60111 | [1] | BUCKET CYLINDER ASSY | |
| *-1 | 31Y1-28970 | [1] | BUCKET CYL SUB ASSY | WITHOUT PIPE |
| 1 | 31Y1-28980 | [1] | TUBE ASSY | |
| 2 | 31Y1-29030 | [1] | ROD ASSY | |
| 2 | 31Y1-29031 | [1] | ROD ASSY | |
| 3 | 31Y1-29080 | [1] | GLAND | |
| 4 | S732-085030 | [1] | BUSHING-DD2 | |
| 5 | Y191-092000 | [1] | RING-SNAP | |
| K6 | Y220-085013 | [1] | SEAL-ROD | |
| K7 | Y180-085020 | [1] | RING-BACK UP | |
| K8 | Y240-085012 | [1] | RING-BUFFER | |
| K9 | Y110-085011 | [1] | WIPER-DUST | |
| 10 | Y190-099000 | [1] | RING-SNAP | |
| K11 | S632-115004 | [1] | O-RING | |
| K12 | S642-115003 | [1] | RING-BACK UP | |
| 13 | 31YC-26060 | [1] | RING-CUSHION | |
| 14 | 31Y1-28940 | [1] | PISTON | |
| 14 | 31Y1-42350 | [1] | PISTON | |
| K15 | Y420-120000 | [1] | SEAL-PISTON | |
| K15 | Y420-120002 | [1] | SEAL-PISTON | |
| K16 | Y310-120203 | [2] | RING-WEAR | |
| K17 | Y440-120002 | [2] | RING-DUST | |
| K17 | Y440-120000 | [2] | RING-DUST | |
| K18 | S632-060004 | [1] | O-RING | |
| K19 | S642-060003 | [2] | RING-BACK UP | |
| 20 | 31YC-68030 | [1] | NUT-LOCK | |
| 20 | 31YC-68165 | [1] | NUT-LOCK | |
| 21 | S114-080144 | [1] | SCREW-SET | |
| K22 | S632-120004 | [1] | O-RING | |
| 23 | S109-160754 | [12] | BOLT-SOCKET | |
| 24 | 31YC-16010 | [1] | BUSHING-PIN | |
| 24 | 61Q6-05570 | [1] | BUSHING-PIN | |
| 25 | 31YC-15020 | [1] | BUSHING-PIN | |
| 25 | 61Q6-97220 | [1] | BUSHING-PIN | |
| 25 | 61Q6-97221 | [1] | BUSHING-PIN | |
| 25 | 61QH-73020 | [1] | BUSHING-PIN | |
| 26 | Y020-080000 | [4] | SEAL-DUST,DLI,KPU | |
| 27 | 31Y1-29290 | [2] | BAND ASSY | |
| 27-1 | 31Y1-29300 | [1] | BAND SUB ASSY | |
| 27-2 | 31YC-31480 | [1] | BAND | |
| 27-3 | S011-100352 | [2] | BOLT-HEX | |
| 27-4 | XKCF-00235 | [2] | WASHER-SPRING | |
| 27-5 | 31YC-36010 | [1] | CLAMP-PIPE | |
| 27-6 | S015-120502 | [1] | BOLT-HEX | |
| 27-7 | S411-120002 | [1] | WASHER-SPRING | |
| 28 | 31Y1-29310 | [1] | PIPE ASSY-R | |
| 29 | 31Y1-15695 | [1] | PIPE ASSY-B | |
| K30 | Y171-019004 | [2] | O-RING | |
| 31 | S107-100454 | [8] | BOLT-SOCKET | |
| K | 31Y1-29100 | [1] | SEAL KIT | SEE ILLUST |
| K | 31Y1-29101 | [1] | SEAL KIT |
*Note:Suitable for different models. Please contact us for the specific part number,part number information is being updated
Keywords:
Hydraulic cylinder on excavator
Hydraulic cylinder on machine
Hydraulic cylinder with pump
Hydraulic cylinder with motor
Excavator hydraulic parts
Hydraulic cylinder repair around me
Hyundai R210LC-9 bucket cylinder
Durable hydraulic cylinders
Excavator replacement parts
Company Information
Factory Tour
| Aspect | Details |
| Company Name | Guangzhou GuoLi Engineering Machinery Co., Ltd. |
| Experience | Over 16 years of expertise in excavator hydraulic cylinders . |
| Specialization | - Crawler Excavator Arm Cylinders - Boom Cylinders - Bucket Cylinders - Custom Hydraulic Cylinders - Seal Kits - Hydraulic Pumps - Electric Parts |
| Production Process | Cylinders produced through a complete hydraulic cylinder production line , from design to manufacturing . Focus on customization for various excavator models. |
| Technological Capabilities | Use of advanced CNC lathes , grinders , and assembly equipment . Strict adherence to ISO quality standards . |
| Global Reach | Products exported to over 100 countries and regions worldwide. |
Piston Rod Production Process
| Feature | Description |
| Material | Tempered steel |
| Surface Treatment | Induction hardened before chrome plating to prevent bending and scratching |
| Rust Resistance | Resists rust for over 100 hours in salt spray tests |
| Production Process | Produced and electroplated in-house |
| Finish | Mirror finish technology |
Automatic Welding Process
| Feature | Description |
| Welding Method | Fully automated welding for consistency and integrity |
| Craftsmanship | Lean welding craft ensures strong joint strength and eliminates defects |
| Weld Seam Quality | Weld seam matches the appearance of original parts |
| Durability | Welded parts are not easy to fall off |
