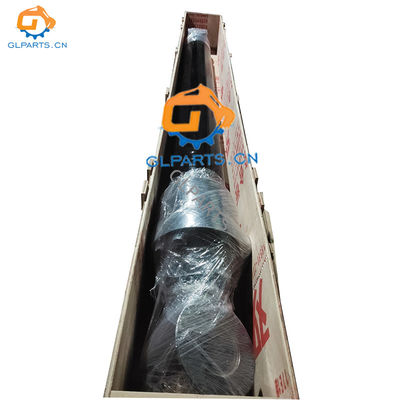

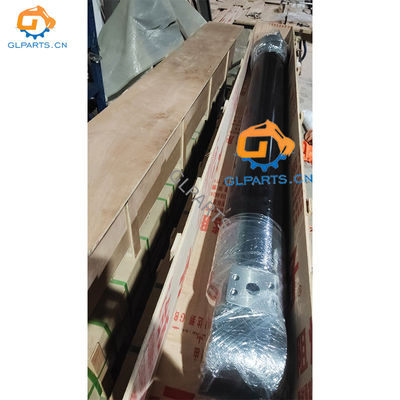

E336D E330D Arm Cylinder Stick Cylinder 283-6194 283-6188 316-6243 For Cat

1
MOQ
Negotiation
Price
E336D E330D Arm Cylinder Stick Cylinder 283-6194 283-6188 316-6243 For Cat
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Hydraulic Arm Cylinder For Catepillar
Product Alias: Excavator Hydraulic Cylinder
Part Number: 283-6194 283-6188 316-6243 2836194 2836188 3166243
Surface Treatment: Piston Rod Hard Chromium Plating Cylinder Tube ,Inner Honed
Seal Brand: For Japan NOK And US SKF
Seal Material: PU
Testing: 100% Pressure Testing Before Delivery
Factory Direct Supply: Yes
Basic Infomation
Place of Origin: Made In China
Brand Name: Glparts
Certification: ISO9001
Model Number: E336D 330D 336D 330D
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 7 Days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 2000pieces/month
Product Description

E336D E330D Arm Cylinder Stick Cylinder 283-6194 283-6188 316-6243 For Cat



Product Description



Product Name

Hydraulic Stick Cylinder Arm Cylinder

Model

E336D 330D 336D 330D

Temperature Range

-30-100°C

Part Number

283-6194 283-6188 316-6243 2836194 2836188 3166243

Pressure Range 21 MPa to 35 MPa
Dimensions Customized

OEM

Yes


Service Stage Details
PreSales Service Free consultation and technical advice.

Customization options for dimensions and performance based on customer requirements.
InSales Service Fast production and delivery times.

Real-time updates on manufacturing and shipment status.
AfterSales Service Warranty on manufacturing defects.

Technical support for installation and maintenance.

Replacement parts available for longterm support.


List Of Spare Parts




Pos. Part No Qty Part Name
1 7Y-4956 1 LOCKNUT (M90X2-THD)
2 9X-3607 1 SEAL AS
3 191-5603 1 PISTON
4 209-5877 1 SEAL-LIP TYPE
5 231-6843 1 RING-SEAL
6 242-6806 1 CYLINDER AS
6A 241-7342 1 BUSHING
7 242-6811 1 ROD AS
7A 241-7342 1 BUSHING
8 103-8345 1 RING-RETAINING
9 107-6579 1 RING
10 107-6933 1 STOP
11 191-5602 1 HEAD
12 191-5604 2 RING
13 191-5605 1 RING
14 191-5643 1 RING-RETAINING
15 191-5645 1 SEAL-BUFFER
16 191-5647 1 RING-BACKUP
17 191-5705 1 STOP
18 209-5876 1 SEAL-U-CUP
19 095-0930 2 RING-RETAINING (EXTERNAL)
20 095-1726 1 SEAL-O-RING
21 191-5644 1 BUSHING
22 7Y-4945 1 RING-BACKUP
23 7Y-5239 8 BOLT-SOCKET HEAD (M24X3X100-MM)
AVAILABLE REPAIR KIT(S):


231-6845




Pos. Part No Qty Parts name
1 9X-3610 1 SEAL AS
2 103-8345 1 RING-RETAINING
3 107-6579 1 RING
4 114-0763 1 BUSHING
5 165-9293 1 SEAL-LIP TYPE
6 200-3620 1 RING-SEAL
7 396-0687 1 STOP
8 359-7190 1 STOP
9 361-1889 1 ROD AS
9A 087-5379 1 BUSHING
10 361-1890 1 PISTON
11 087-5391 1 RING-BACKUP
12 087-5393 1 RING-RETAINING
13 087-5395 1 HEAD
14 167-2341 1 SEAL-U-CUP
15 087-5397 1 RING-BACKUP
16 095-0930 2 RING-RETAINING (EXTERNAL)
17 095-1267 2 SETSCREW-SOCKET (M10X1.5-THD)
18 095-1728 1 SEAL-O-RING
19 170-9850 1 SEAL-BUFFER
20 143-8138 2 RING
21 147-5787 1 RING
22 316-6244 1 CYLINDER AS
22A 087-5379 1 BUSHING
23 7Y-5239 10 BOLT-SOCKET HEAD (M24X3X100-MM)
24 8T-8380 1 SEAL


Company Information





GuangZhou GuoLi Engineering Machinery Co., Ltd., with over 16 years of experience in excavator hydraulic cylinders, is a foreign trade company specializing in a wide range of products, including crawler excavator arm cylinders, boom cylinders, bucket cylinders, cylinder tubes, cylinder rods, custom hydraulic cylinders, seal kits, hydraulic pumps, and electric parts, all designed for various excavator models. Our products have been exported to over 100 countries and regions worldwide.


Factory Tour



Our main product, excavator cylinders, is produced through a complete hydraulic cylinder production line, from design to manufacturing. With over ten years of experience, we’ve upgraded our offerings to multi-stage hydraulic cylinders. We focus on cylinder customization and produce a variety of domestic and imported excavator cylinders. Using advanced CNC lathes, grinders, and assembly equipment, we strictly follow ISO quality standards throughout production.


Piston Rod Production Process

E336D E330D Arm Cylinder Stick Cylinder 283-6194 283-6188 316-6243 For Cat 1

Automatic Welding Process

E336D E330D Arm Cylinder Stick Cylinder 283-6194 283-6188 316-6243 For Cat 2

Finished Product Warehouse Display


E336D E330D Arm Cylinder Stick Cylinder 283-6194 283-6188 316-6243 For Cat 3




Exhibition Showcase



Our Presence at Major Exhibitions: 2023 Malaysia & 2024 Shanghai Bauma



Exhibition With Cooperated Clients
