Hydraulic Control Valve K1027361A K1027361B For Doosan DX55 DX60 Components
Prouduct Description
| Product Name | Hydraulic Main Control Valve |
| Model | DX55 DX60 |
| Part Number | K1027361A K1027361B |
| Application | For Doosan DX55 DX60 |
| OEM | Yes |
| Shipping Address | Guangzhou,China |
| Sales Unit | Single product |
| Single product packaging size | 50X50X50 cm |
| Accuracy class | ≤0.05mm(specific models can reach higher accuracy) |
| More Control Valve We Provided | K1026613H 150126-00016A 150126-00016 K1027669A |
List Of Spare Parts
| Pos. | Part No | Parts name |
| -. | K1027361A | CONTROL VALVE |
| -. | K1027361B | CONTROL VALVE |
| -. | 410105-00402 | |
| 1 | K9005314 | NUT |
| 10 | K9005842 | BLOCK Assy-BOOM2/AUX |
| 10-10. | K9005491 | PLUG |
| 10-11. | K9005482 | O-RING |
| 10-3. | 110910-01059 | |
| 10-7. | K9005483 | POPPET |
| 10-9. | K9005484 | SPRING |
| 11 | K9005843 | BLOCK Assy-DOZER |
| 11-10. | K9005491 | PLUG |
| 11-11. | K9005482 | O-RING |
| 11-14. | S8010700 | O-RING |
| 11-3. | 110910-01059 | |
| 11-7. | K9005483 | POPPET |
| 11-9. | K9005484 | SPRING |
| 12 | K9005979 | BLOCK Assy-BOOM SWING |
| 12-10. | K9005491 | PLUG |
| 12-11. | K9005482 | O-RING |
| 12-14. | S8010700 | O-RING |
| 12-3. | 110910-01059 | |
| 12-7. | K9005483 | POPPET |
| 12-9. | K9005484 | SPRING |
| 13 | K9005844 | BLOCK Assy-SWING |
| 13 | K9005844A | |
| 13-10. | K9005491 | PLUG |
| 13-11. | K9005482 | O-RING |
| 13-14. | S8010700 | O-RING |
| 13-3. | 110910-01059 | |
| 13-7. | K9005483 | POPPET |
| 13-9. | K9005484 | SPRING |
| 14 | K9005319 | BLOCK Assy-S TRAVEL |
| 14-11. | K9005487 | PLUG |
| 14-12. | K9005482 | O-RING |
| 14-15. | S8010700 | O-RING |
| 14-3. | 110910-01062 | |
| 14-8. | 110910-01063 | |
| 15 | K9005317 | RELIEF VALVE;MAIN |
| 15 | K9009929 | RELIEF VALVE;MAIN |
| 16 | K9005317 | RELIEF VALVE;MAIN |
| 16 | K9009929 | RELIEF VALVE;MAIN |
| 17 | K9005315 | RELIEF VALVE Assy |
| 18 | K9005659 | VALVE;SHUT OFF |
| 2 | K9005330 | TIE-ROD |
| 3 | K9005835 | BLOCK Assy-ARM2 |
| 3-10. | K9005491 | PLUG |
| 3-11. | K9005482 | O-RING |
| 3-3. | 110910-01059 | |
| 3-7. | K9005483 | POPPET |
| 3-8. | K9005488 | POPPET |
| 3-9. | K9005484 | SPRING |
| 4 | K9005836 | BLOCK Assy-BUCKET |
| 4-10. | K9005491 | PLUG |
| 4-11. | K9005482 | O-RING |
| 4-14. | S8010700 | O-RING |
| 4-3. | 110910-01059 | |
| 4-7. | K9005483 | POPPET |
| 4-8. | K9005489 | POPPET |
| 4-9. | K9005484 | SPRING |
| 5 | K9005837 | BLOCK Assy-BOOM1 |
| 5-10. | K9005491 | PLUG |
| 5-11. | K9005482 | O-RING |
| 5-12. | S8010700 | O-RING |
| 5-13. | K9005485 | O-RING |
| 5-20. | S2205661 | BOLT |
| 5-21. | 181-00561 | PLUG ASSY |
| 5-3. | 110910-01059 | |
| 5-7. | K9005486 | VALVE;ANTI-DRIFT |
| 5-8. | K9005483 | POPPET |
| 5-9. | K9005484 | SPRING |
| 6 | K9005838 | BLOCK Assy-TRAVEL R |
| 6-11. | S8010700 | O-RING |
| 6-3. | 110910-01059 | |
| 6-7. | K9005487 | PLUG |
| 6-8. | K9005482 | O-RING |
| 7 | K9005839 | BLOCK Assy-INLET |
| 7-3. | 110910-01060 | |
| 7-5. | 110910-01061 | |
| 7-7. | S8010700 | O-RING |
| 7-9. | K9004467 | PLUG |
| 8 | K9005840 | BLOCK Assy-TRAVEL L |
| 8-11. | S8010700 | O-RING |
| 8-3. | 110910-01059 | |
| 8-7. | K9005487 | PLUG |
| 8-8. | K9005482 | O-RING |
| 9 | K9005980 | BLOCK Assy-ARM1 |
| 9-10. | K9005491 | PLUG |
| 9-11. | K9005482 | O-RING |
| 9-14. | S8010700 | O-RING |
| 9-19. | S8000101 | O-RING |
| 9-21. | S8000205 | O-RING |
| 9-3. | 110910-01059 | |
| 9-7. | K9005483 | POPPET |
| 9-9. | K9005484 | SPRING |

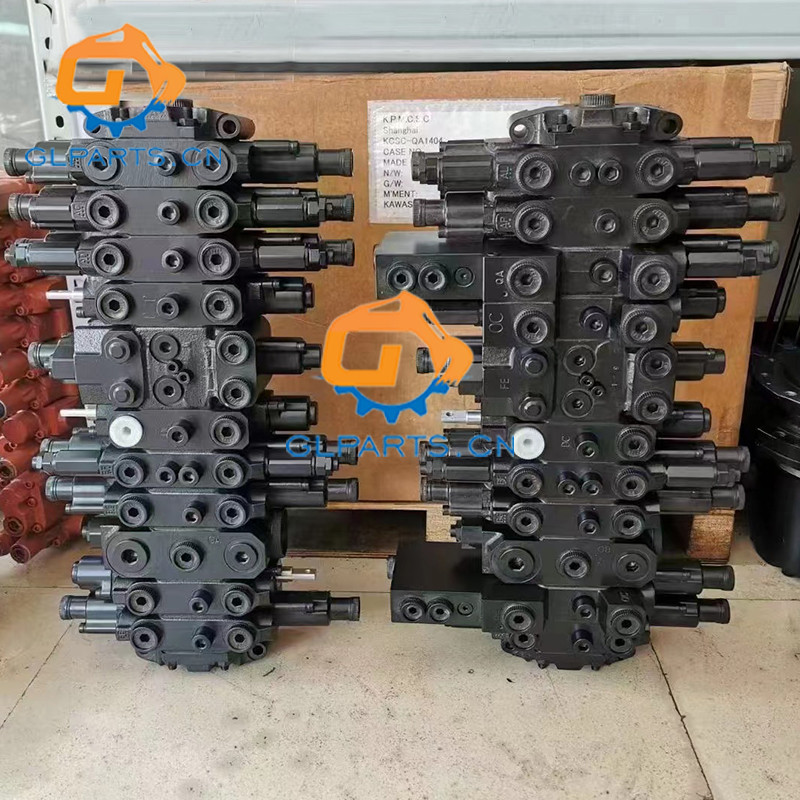

Product Display
Company Information
+16 years experience in hydraulic parts production, GLPARTS brand hydraulic control valve are known for their durability, reliability in all conditions and value for many. OEM is available.
Certified , excellent quality management system and testing method make the product strong enough to resist all kinds of climate and environment and work stable. For now, we have the certification like CE,ISO,certified.
Customized hydraulic solution, we can manufacture according to the technical drawing from the client or we can offer our professional suggestion or guidance for our client according to our experience.
The package can be done as the request of the clients.
For now, we have export more than 16 countries,wining the trust of the customer.
