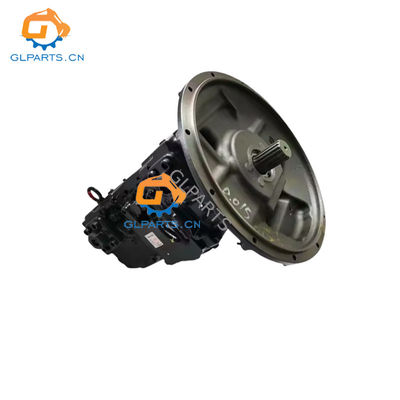

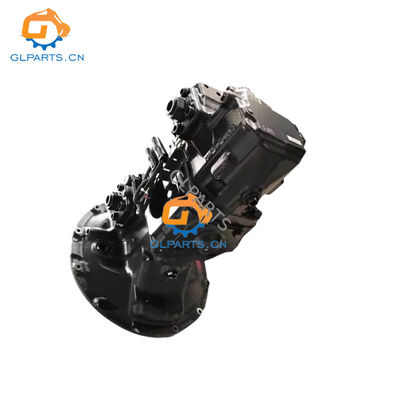

708-2J-00011 Main Hydraulic Pump PC490LC PC490-10 PC450-10 For Komatsu
Product Description
| Product Nam | Main Piston Pump |
| Specification | PC300LC-8MO |
| Part Number | PC490LC PC490-10 PC450-10 |
| Structure Type | Piston Pump |
| Displacement Range | High Flow |
| Pressure Range | High pressure (250-350 bar, peak up to 400 bar) |
| Compatibility | Supports various hydraulic oils (mineral oil, synthetic oils), compliant with ISO viscosity grades |
If you are interested in the following pump models. Or do not know how to confirm your pump model, please contact us
List Of Pump Spare Parts
| Pos |  Part No |
Parts name |
| 708-2J-01012 | Pump Subassembly | |
| 708-2J-04111 | Case Assembly, Front | |
| 3 | 708-1L-29340 | Orifice |
| 4 | 07000-B1009 | O-ring |
| 5 | 07000-B2012 | O-ring |
| 6 | 07000-B2014 | O-ring |
| 7 | 708-8E-16150 | Plug |
| 8 | 07002-61023 | O-ring |
| 9 | 07044-12412 | Plug |
| 10 | 07002-62434 | O-ring |
| 11 | 20B-27-11210 | Bleeder |
| 1 | 708-2J-12150 | Coupling |
| 2 | 708-2J-13530 | Bearing, Thrust |
| 3 | 708-2H-32320 | Bushing |
| 4 | 708-2J-13361 | Impeller |
| 5 | 01252-91650 | Bolt, Hexagon Socket Head |
| 6 | 04020-00820 | Pin, Dowel |
| 7 | 708-2J-11140 | Cover |
| 8 | 07000-A2105 | O-ring |
| 9 | 708-2H-05120 | Shim Kit |
| 10 | 01010-81235 | Bolt |
| 11 | 01643-31232 | Washer |
| 708-2J-04210 | Case Assembly | |
| 12 | 708-2J-12530 | Case |
| 13 | 708-2J-12540 | Collar |
| 14 | 708-2J-12510 | Shaft |
| 15 | 708-8H-22350 | Bearing |
| 16 | 708-2J-12520 | Bearing |
| 17 | 708-2J-05130 | Spacer Kit |
| 18 | 04064-04018 | Ring, Snap |
| 19 | 708-2J-05120 | Shim Kit |
| 20 | 04065-01030 | Ring, Snap |
| 21 | 708-2J-13540 | Spacer |
| 22 | 01010-E1220 | Bolt |
| 23 | 708-2H-32350 | Washer |
| 708-2J-05220 | Gear Kit | |
| 24 | 708-2J-13510 | Gear, Bevel |
| 25 | 708-2J-13520 | Pinion |
| 26 | 708-2J-13550 | Pinion |
FAQ
| Question | Answer |
| What type of hydraulic system does the PC490LC-10 use? | It employs the HydrauMind system, a closed-center system with load sensing and pressure compensated valves, featuring six selectable working modes. |
| What is the maximum flow rate of the main hydraulic pump? | The variable displacement axial piston type main pump delivers a maximum flow of 206 US gallons per minute. |
| What are the relief valve settings for the implement circuits? | The relief valve for implement circuits is set at 5,400 psi. |
