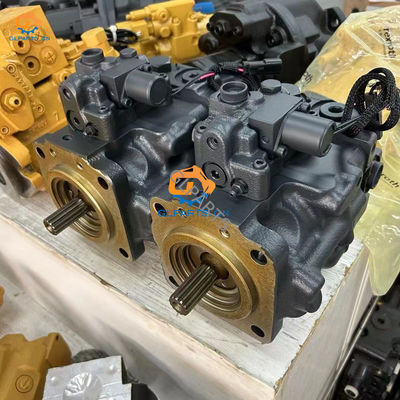

708-1S-00940 D375A Main Pump Hydraulic Parts For Komatsu WA380 WA430 WA450 WA470 WA480
Product Description
| Product Nam | Komatsu Hydrauli Main Pump |
| Specification | D375A WA380 WA430 WA450 WA470 WA480 |
| Part Number | 708-1S-00940 |
| Pump Flow Capacity | 79.3 gallons per minute (300 liters per minute) |
| Pump Type | Piston |
| Relief Valve Pressure | 3,500 psi |
| Model | Hydraulic System Type | Pump Type | Flow Rate | Rated Pressure |
| D375A-8 | Closed-Center Load Sensing System (CLSS) | Variable Displacement Piston Pump | 366 L/min | 29.8 MPa |
| D375A-6 | Not Specified | Not Specified | Not Specified | Not Specified |
| D375A-3 | Not Specified | Multi-Stage Gear Pump | 405 L/min | 21.0 M |
If you are interested in the following pump models. Or do not know how to confirm your pump model, please contact us
List Of Pump Spare Parts
| Pos | Part No | Part Name |
| 708-1S-00940 | Pump Assembly, Fan | |
| 708-1S-01940 | Pump Subassembly | |
| 708-1S-04280 | Case Subassembly | |
| 4 | 708-1S-13440 | Cam, Rocker |
| 5 | 04260-01270 | Ball OEM |
| 6 | 708-3S-14140 | Spacer |
| 7 | 708-1S-13420 | Pin China |
| 8 | 01252-60616 | Bolt, Hexagon Socket Head |
| 9 | 708-1S-13430 | Ball, Retainer China |
| 10 | 01252-61235 | Bolt, Hexagon Socket Head |
| 11 | 04020-01024 | Pin, Dowel |
| 12 | 708-2L-25490 | O-ring |
| 13 | 708-2L-25480 | Filter OEM |
| 14 | 708-1S-19710 | Orifice |
| 15 | 708-1S-19920 | Plate China |
| 16 | 07000-12065 | O-ring |
| 17 | 01010-81025 | Bolt |
| 18 | 01643-31032 | Washer |
| 708-1S-04490 | Cap Subassembly China | |
| 21 | 720-68-19610 | Pin |
| 22 | 07000-11006 | O-ring |
| 23 | 07000-12125 | O-ring OEM |
| 24 | 702-21-55620 | Plug |
| 25 | 07040-11409 | Plug |
| 26 | 07002-11423 | O-ring China |
Features
| Category | Description |
| Structure Type | Axial Piston Pump (Swashplate/Tilting Axis Design) |
| Displacement Range | High Displacement (Example: 50-500 cc/rev, model-specific) |
| Pressure Range | High Pressure (250-400 bar, peak up to 450+ bar) |
| Materials | Housing (Cast Iron/Aluminum Alloy), Pistons (Hardened Steel), Valve Plate (Copper Alloy/Composite Materials) |
| Sealing Method | Mechanical Seal or O-Ring, suitable for high-temperature and high-pressure environments |
