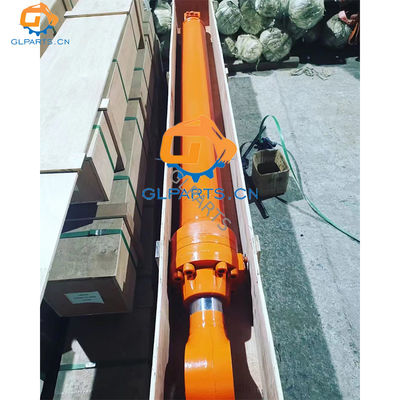

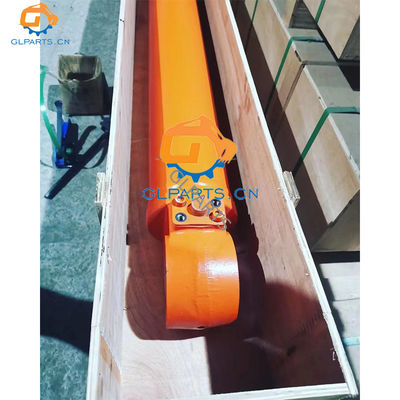

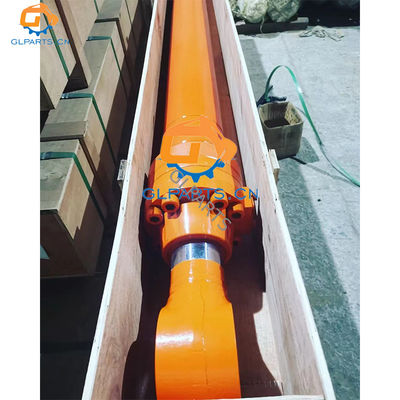

EX200 EX200-1 Excavator Hydraulic Cylinder For Hitachi Arm Cylinder 418-0278

1
MOQ
Negotiation
Price
EX200 EX200-1 Excavator Hydraulic Cylinder For Hitachi Arm Cylinder 418-0278
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Hitachi Excavator Parts Arm Cylinder
Product Alias: Excavator Hydraulic Cylinder
Part Number: 418-0278 4180278
Surface Treatment: Piston Rod Hard Chromium Plating Cylinder Tube ,Inner Honed
Seal Brand: For Japan NOK And US SKF
Seal Material: PU
Testing: 100% Pressure Testing Before Delivery
Factory Direct Supply: Yes
Highlight:

EX200-1 Excavator Hydraulic Cylinder

,

EX200-1 Hitachi Arm Cylinder

,

Hitachi Arm Cylinder 418-0278

Basic Infomation
Place of Origin: Made In China
Brand Name: Glparts
Certification: ISO9001
Model Number: EX200 EX200-1
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 7 Days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 2000pieces/month
Product Description

EX200 EX200-1 Arm Cylinder Excavator Hydraulic Parts For Hitachi 418-0278




Product Description




Product Name

For Hitachi Arm Cylinder

Model

EX200 EX200-1

Temperature Range

-20-80°C

Part Number



418-0278 4180278

Pressure Range 21 MPa to 35 MPa
Dimensions Customized

OEM

Yes



Service Stage Details
PreSales Service Free consultation and technical advice.
  Customization options for dimensions and performance based on customer requirements.
InSales Service Fast production and delivery times.
  Real-time updates on manufacturing and shipment status.
AfterSales Service Warranty on manufacturing defects.
  Technical support for installation and maintenance.
  Replacement parts available for longterm support.



List Of Spare Parts






Pos Part No Qty Parts name Comments
  4180278 [1] CYL. ARM 0312900A
1-33 4207262 [1] CYL. (PIPELESS)
1 4228682 [1] TUBE CYL.
1A 312901 [1] TUBE CYL.
1B 309215 [1] BUSHING PIN
2 4228681 [1] ROD PISTON
2A 309202 [1] ROD PISTON
2B 309215 [1] BUSHING PIN
3 309203 [1] HEAD CYL.
4 309204 [1] BUSHING
5 236905 [1] RING RETAINING
6 309205 [1] RING
7 127207 [1] PACKING U-RING
8 236919 [1] RING BACK-UP
9 309206 [1] RING
10 236920 [1] RING WIPER
11 4035039 [1] O-RING
12 309207 [1] RING BACK-UP
13 309208 [1] BRG. CUSHION
14 309209 [1] PISTON
15 309210 [1] RING SEAL
16 309211 [2] RING
17 309212 [2] RING
18 309213 [1] NUT
19 309011 [1] SCREW SET
20 111707 [1] BALL STEEL
21 309214 [8] BOLT SOCKET
32 J75481 [1] FITTING
33 309216 [1] SHIM
53 309217 [1] PIPE
54 312902 [1] PIPE
55 984614 [2] O-RING
56 309020 [8] BOLT SOCKET
57 309219 [3] CLAMP PIPE
58 237417 [3] BOLT
59 208516 [3] WASHER SPRING
60 178820 [6] BOLT
61 A590910 [6] WASHER SPRING
64 309220 [3] BAND
65 309221 [3] BAND
100 4206019 [1] KIT SEAL

EX200 EX200-1 Excavator Hydraulic Cylinder For Hitachi Arm Cylinder 418-0278 0

*Note:Suitable for different models. Please contact us for the specific part number,part number information is being updated



Company Information






GuangZhou GuoLi Engineering Machinery Co., Ltd., with over 16 years of experience in excavator hydraulic cylinders, is a foreign trade company specializing in a wide range of products, including crawler excavator arm cylinders, boom cylinders, bucket cylinders, cylinder tubes, cylinder rods, custom hydraulic cylinders, seal kits, hydraulic pumps, and electric parts, all designed for various excavator models. Our products have been exported to over 100 countries and regions worldwide.



Factory Tour



Our main product, excavator cylinders, is produced through a complete hydraulic cylinder production line, from design to manufacturing. With over ten years of experience, we’ve upgraded our offerings to multi-stage hydraulic cylinders. We focus on cylinder customization and produce a variety of domestic and imported excavator cylinders. Using advanced CNC lathes, grinders, and assembly equipment, we strictly follow ISO quality standards throughout production.


Piston Rod Production Process





Feature Description
Material Tempered steel
Surface Treatment Induction hardened before chrome plating to prevent bending and scratching
Rust Resistance Resists rust for over 100 hours in salt spray tests
Production Process Produced and electroplated in-house
Finish Mirror finish technology



EX200 EX200-1 Excavator Hydraulic Cylinder For Hitachi Arm Cylinder 418-0278 2

Automatic Welding Process





Feature Description
Welding Method Fully automated welding for consistency and integrity
Craftsmanship Lean welding craft ensures strong joint strength and eliminates defects
Weld Seam Quality Weld seam matches the appearance of original parts
Durability Welded parts are not easy to fall off



EX200 EX200-1 Excavator Hydraulic Cylinder For Hitachi Arm Cylinder 418-0278 3

Finished Product Warehouse Display



EX200 EX200-1 Excavator Hydraulic Cylinder For Hitachi Arm Cylinder 418-0278 4





Exhibition Showcase




Our Presence at Major Exhibitions: 2023 Malaysia & 2024 Shanghai Bauma



Exhibition With Cooperated Clients






Certificates






Certification


FAQ






1.How can I be sure the part will fit my excavator ?

  • Give us correct model number /machine serial number /any numbers on the parts itself.

  • Or measure the parts give us dimension or drawing.



2.What material do you use on hydraulic cylinder?

  • High frequency quenching No.40 manganese steel as rod material so the cylinder rod has better bending resistance.

  • No.25 manganese steel as tube material ,so the tube has better wear resistance,

    High-strength hardened steel as rod head and tube head ,so the cylinder head and rod head more durable.

  • Name-brand seal kits to reduce the hydraulic cylinder oil leakage rate.



3.How long can an order delivery?

  • For some often used models of excavator hydraulic cylinder , we have in stock, within 7 days .

  • For any order less than one container takes about 2 weeks to finish; Order of 1-2 container takes 4 -6weeks.

  • At busy manufacturing season, manufacturing time needs more which can confirm by discussion.



4.How to pay?

  • Order less than 3000USD, full payment at order, Order over USD3000 value ,50% deposited in to start,

    50% balance paid to deliver,inspection service accepted.

  • For customized order, 70%payment as deposit ,30% balance paid to deliver.



5.How to delivery?

  • If you have shipping agent ,we will cooperate with your agent to arrange shipment .

  • If not , we have good relationships with shipping companies, express suppliers.

  • For light goods ,by UPS/DHL/TNT(DAP terms) , For heavy goods ,by sea (FOB,CIF,CFR)
