Hydraulic Cylinder Repair Bench Service Bench for Cylinder Assemble Assembly Disassembly Disassemble
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Hydraulic Cylinder Repair, Disassembly And Assembly Bench | Cylinder Barrel External Dia | 80 - 300mm |
|---|---|---|---|
| Stroke | 0.5 - 3m | Push Power | 78.5KN |
| Pull Power | 59KN | Length | 7.5m |
| Width | 0.88m | Height | 1.7m |
| Total Weight | 2.2T | Warranty | 12 Months |
| Highlight | Hydraulic Cylinder Repair Bench,Disassemble Hydraulic Cylinder Repair Bench,Service Hydraulic Cylinder Repair Bench |
||
Product Description

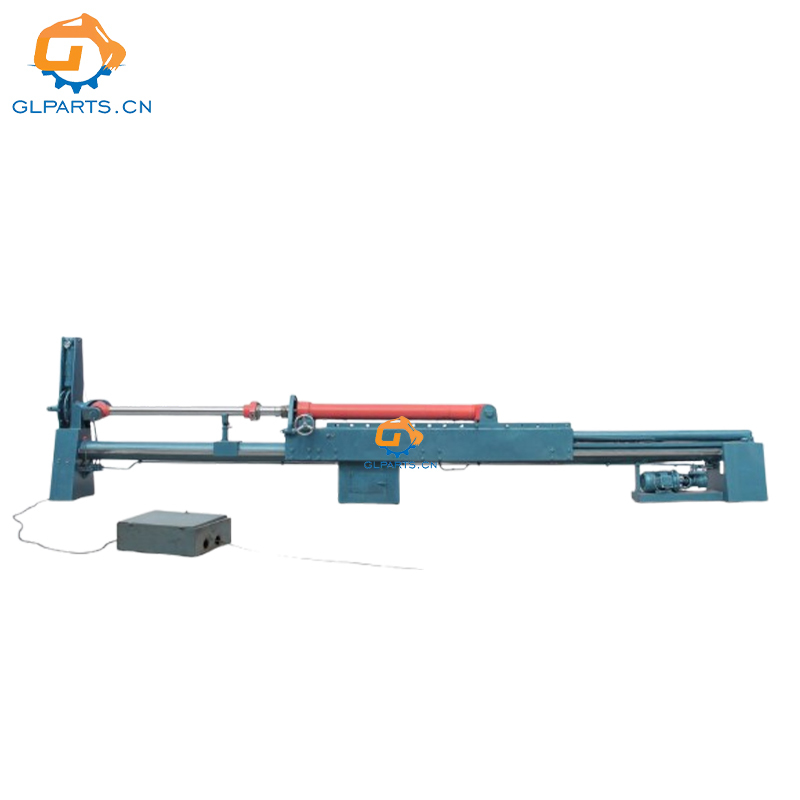

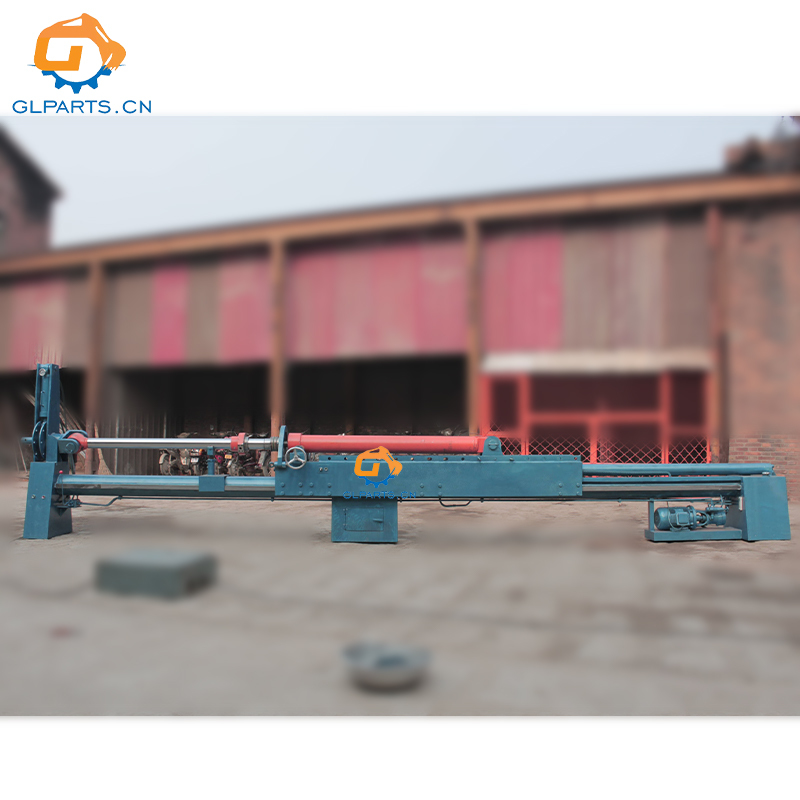

Hydraulic Cylinder Repair Bench
Professional Service Bench for Cylinder Assembly & Disassembly
Product Specifications
| Attribute | Value |
|---|---|
| Cylinder barrel external diameter | 80 - 300mm |
| Stroke | 0.5 - 3m |
| Push power | 78.5KN |
| Pull power | 59KN |
| Dimensions (L×W×H) | 7.5m × 0.88m × 1.7m |
| Total weight | 2.2T |
| Warranty | 12 Months |
Technical Specifications
Piston rod nut elastic torsion power: 28848N.m
Maximum hydraulic system pressure: 25MPa (Factory setting: 10MPa push-pull, 21MPa torsion)
Hydraulic pressure station: 4KW three phase (380V)
Hydraulic pump displacement: 10ml/r
Hydraulic fuel tank capacity: 70L
Key Benefits
- Increased Efficiency: Significantly reduces cylinder disassembly/assembly time, minimizing equipment downtime
- Enhanced Safety: Securely holds heavy cylinders during repair, eliminating manual handling risks
- Reliable Testing: Integrated systems for pressure and leakage testing ensure proper functionality
- Extended Component Life: Precise servicing improves cylinder longevity and performance
- Cost Effective: High-quality repairs reduce the need for expensive cylinder replacements
Key Features
- Heavy-Duty Construction: Robust frame ensures stability during operation
- Secure Chain Vise: Firmly grips cylinders for safe, precise work
- Quick Setup: Easy adjustments minimize preparation time
- High Torque Capacity: Handles demanding applications without component damage
- Integrated System: Complete solution for clamping, rotating, and testing
